AM0010-02-5DI81MA

The predecessor of this article is AM0010-02-5DI21MA. All changes are in the Product Change Notification (PCN).

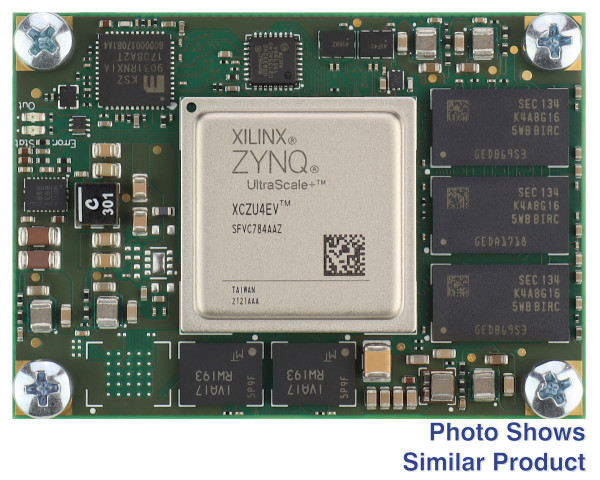

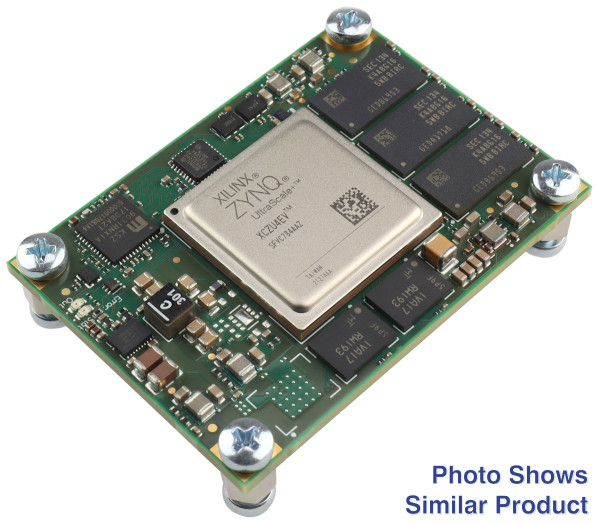

The Trenz Electronic AM0010-02-5DI81MA is a MPSoC module integrating a AMD Zynq™ UltraScale+™ ZU5EV, 4 GByte DDR4 SDRAM with ECC, 2 x 64 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 4 x 5.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC
  • Device: AMD Zynq™ UltraScale+™ XCZU5EV-1SFVC784I
  • Engine: EV
  • Speedgrade: -1
  • Temperature Range: Industrial
  • Package: SFVC784
• RAM/Storage
  • 4 GByte DDR4 SDRAM with ECC
  • 8 GByte e.MMC
  • 2 x 64 MByte Serial Flash
  • EEPROM with MAC address
• On Board
  • Gigabit Ethernet Transceiver
  • USB Transceiver
  • OPTIGA Trust M
  • CryptoAuthentication
  • Oscillator
  • Analog Multiplexer
• Interface
  • 2 x B2B Connector (ADM6)
    • up to 204 PL IO
    • up to 22 PS MIO
    • 4 GTR
    • 4 GTH
    • ETH, USB, I2C, JTAG, ...
• Power
  • 5 V ... 12 V power supply via B2B Connector needed
• Dimension
  • 40 x 56,4 mm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x AM0010-02-5DI81MA Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU5EV
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer's article number: AM0010-02-5DI81MA
• Trenz Electronic AM0010 Wiki
• Support Forum
