KK0865-02


価格(税別)21,480
在庫メーカー在庫 16個
カートに入れる

The predecessor of this article is KK0865-02. All changes are in the Product Change Notification (PCN).

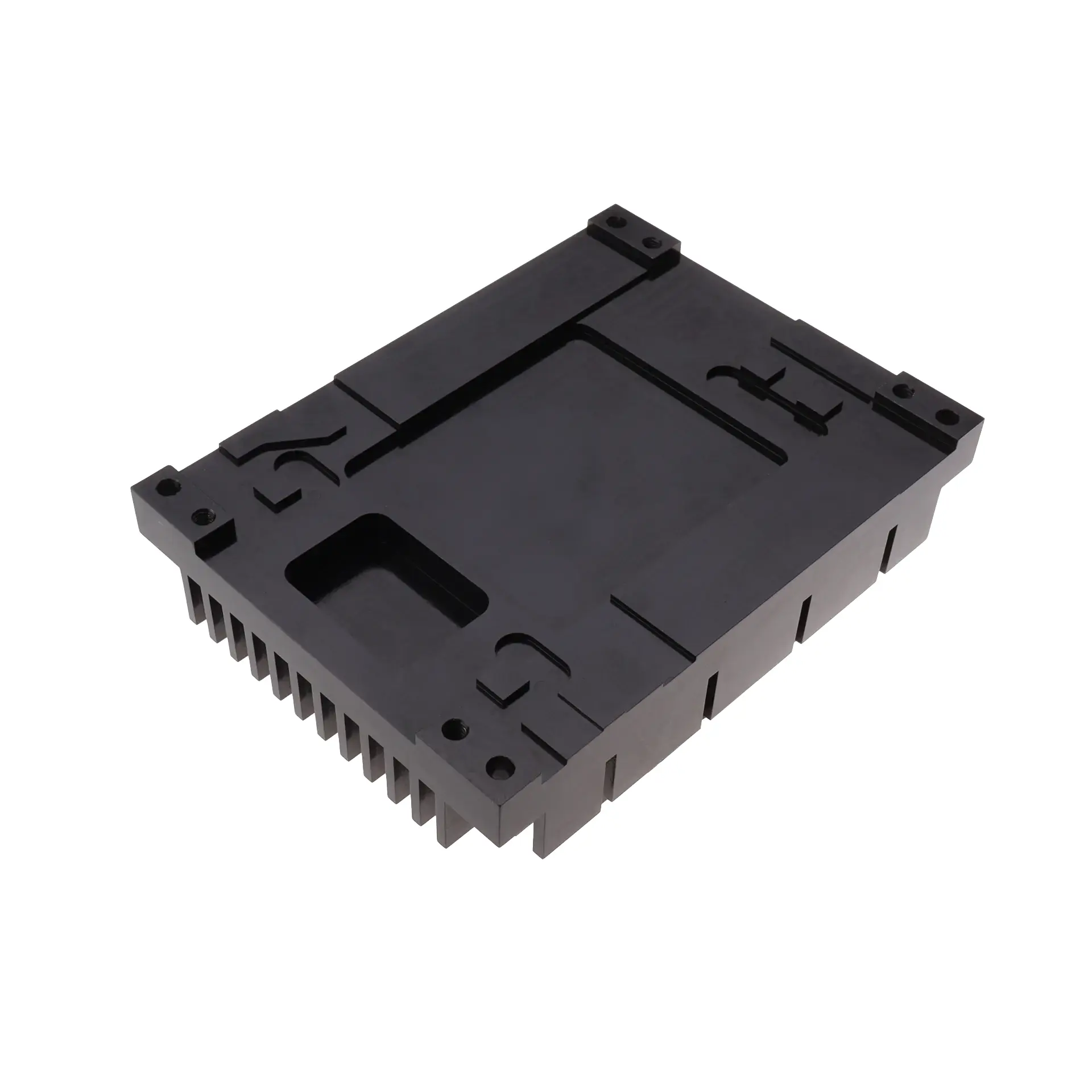

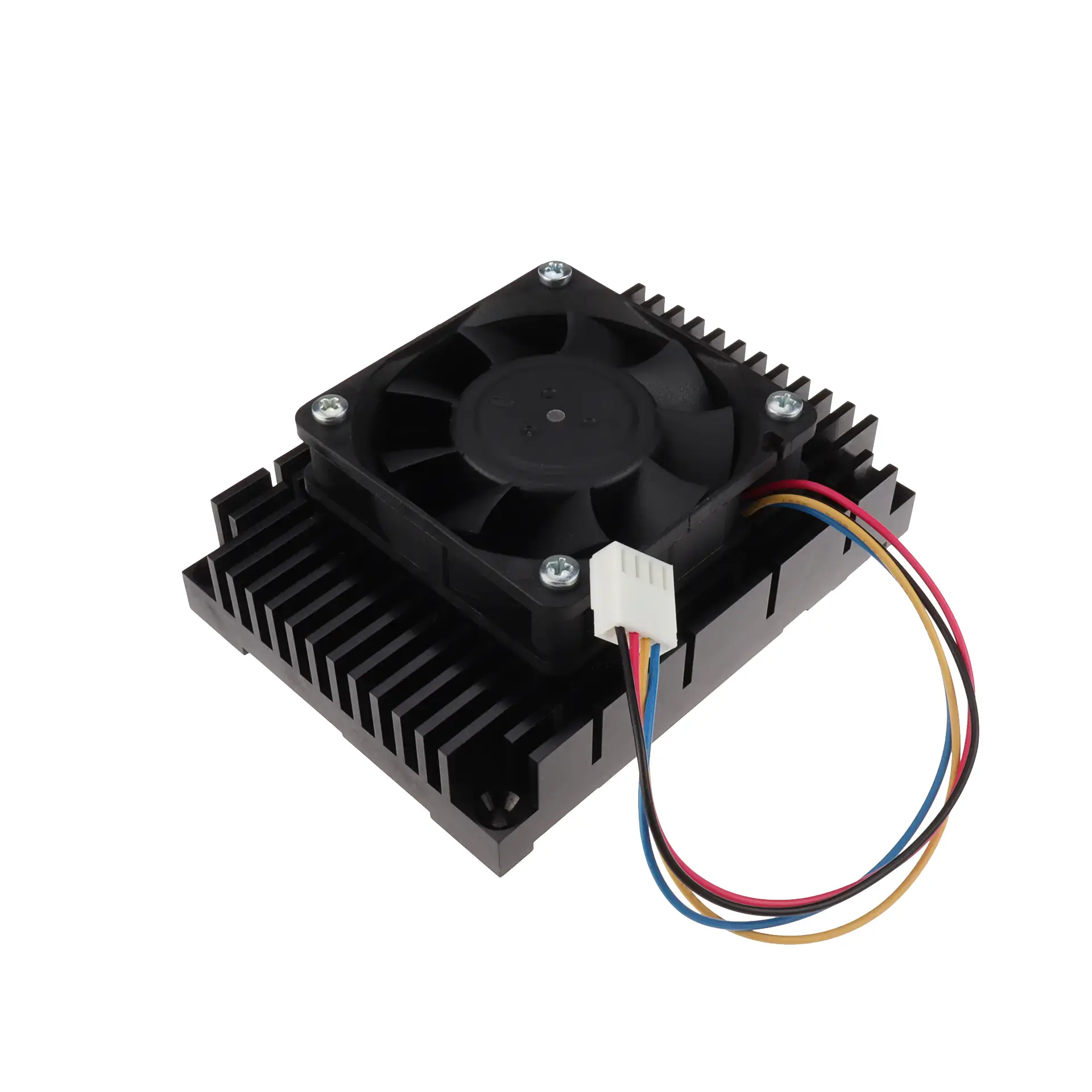

Cooling solution with fan especially desgined for Trenz Electronic module TE0865.

Important note: This heat spreader requires a so-called gapfiller. For this reason it is recommended to have the heat spreader installed here. Please leave a note in the comment box at the end of your order.

  • Order number: KK0865-02
  • Flat
  • Custom-fit for TE0865 module
  • Surface treatment: ELOXAL black
  • Fan axial 12V DC 60 x 60 x 15 mm PWM
  • Please check the technical drawing for the exact dimensions of the heat spreader (see Downloads).

特徴

納品物

  • 1 x KK0865-02 heat spreader for Trenz Electronic modules TE0865
  • 1 x Fan (axial, square)
  • 4 x screws M3 6mm
  • 4 x screws M3 12mm
  • 4 x screws M3 25mm
  • 4 x bolts M3x5

追加情報


リンク



製品名 価格(税別)
KK0865-02 ¥21,480カートに入れる
