TE0600-04-83C21-A

This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

The predecessor of this article is TE0600-03-83C21-A. All changes are in the Product Change Notification (PCN).

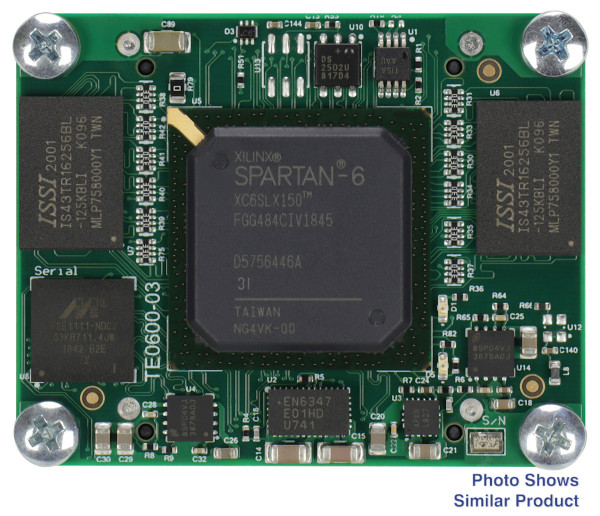

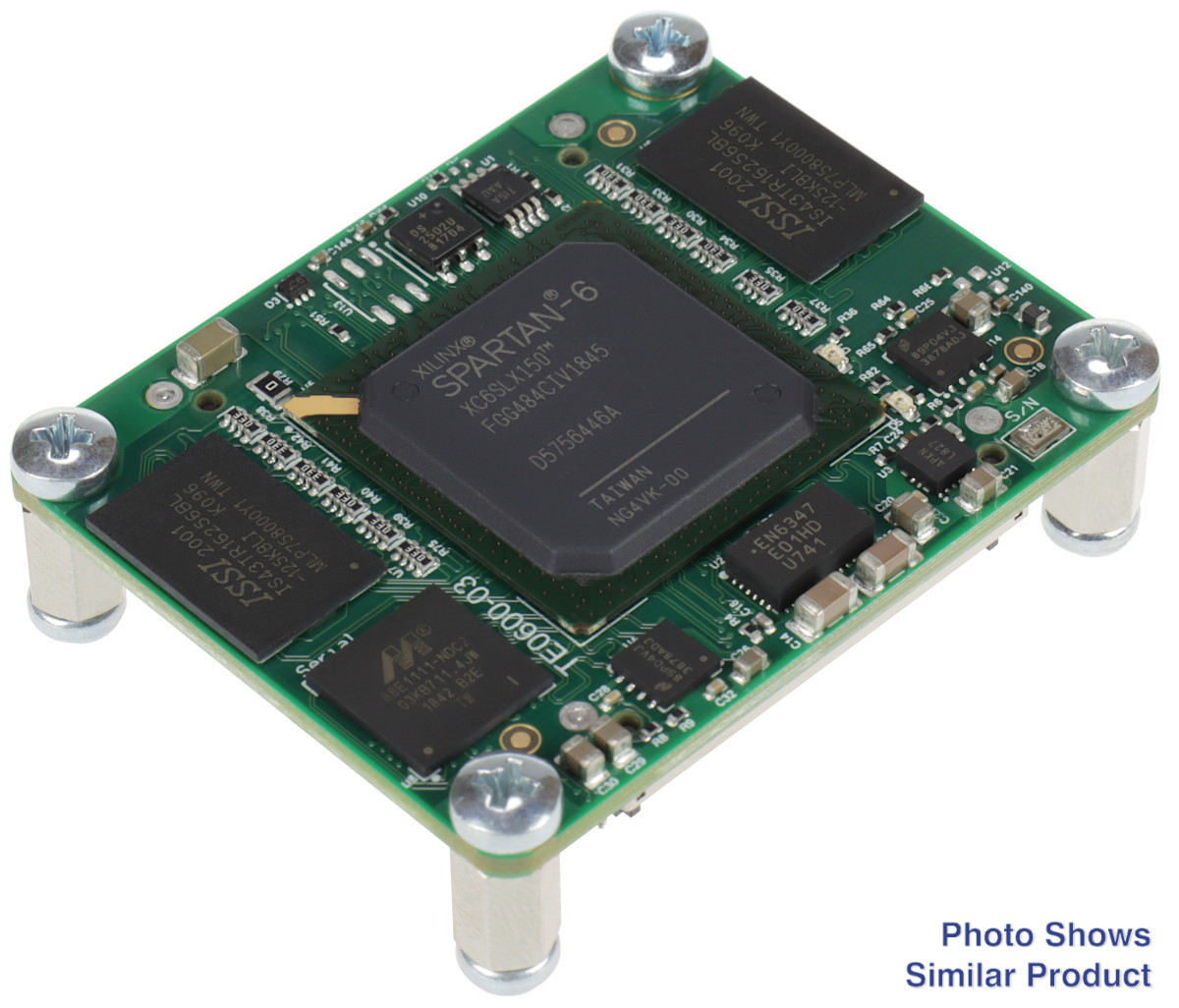

The Trenz Electronic TE0600-04-83C21-A is an commercial temperature range FPGA micromodule integrating a AMD Spartan™ 6 LX150 FPGA, Gigabit Ethernet transceiver (physical layer), two independent banks of 16-bit-wide 512 MByte DDR3 SDRAM, 16 MBytes SPI Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via robust board-to-board (B2B) connectors.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Spartan™ 6 XC6SLX150-3FGG484C FPGA
• 10/100/1000 tri-speed Gigabit Ethernet transceiver (PHY)
• 2 x 4 Gbit (512 MByte) DDR3L SDRAM
• 128 Mbit (16 MByte) serial Flash memory with dual/quad SPI-Interface (for configuration and operation), accessible through:

  • 1 kb protected 1-Wire EEPROM with SHA-1 Engine
• JTAG port (SPI indirect)
• FPGA configuration through:
  • B2B connector
  • JTAG port
  • SPI Flash memory

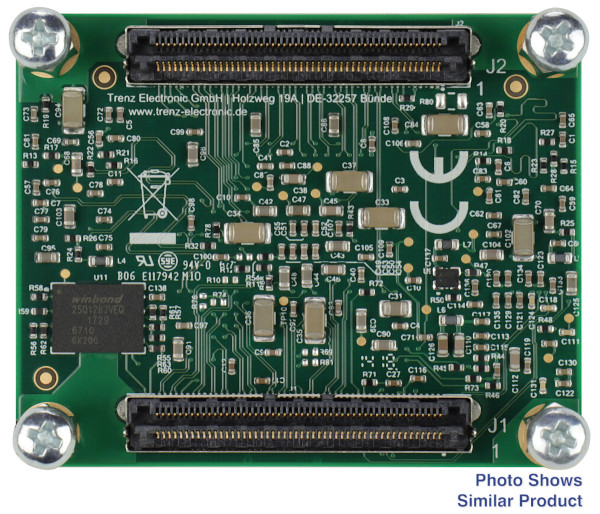

• Plug-on module with 2 × 100-pin high-speed hermaphroditic strips
• Up to 52 differential, up to 109 single-ended (+ 1 dual-purpose) FPGA I/O pins available on B2B strips
• 6.0 A x 1.2 V power rail
• 3.0 A x 1.5 V power rail
• 2x 1A x 2.5V power rail
• 125 MHz reference clock signal
• Single-ended custom oscillator (option)
• eFUSE bit-stream encryption (LX100 or larger)
• 1 user LED
• Evenly-spread supply pins for good signal integrity
• Size: 4 x 5 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0600-04-83C21-A Trenz Electronic GigaBee module with AMD Spartan™ 6 FPGA
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer's article number: TE0600-04-83C21-A
