TE0630-03-82I22-A

The predecessor of this article is TE0630-03-82I12-A.

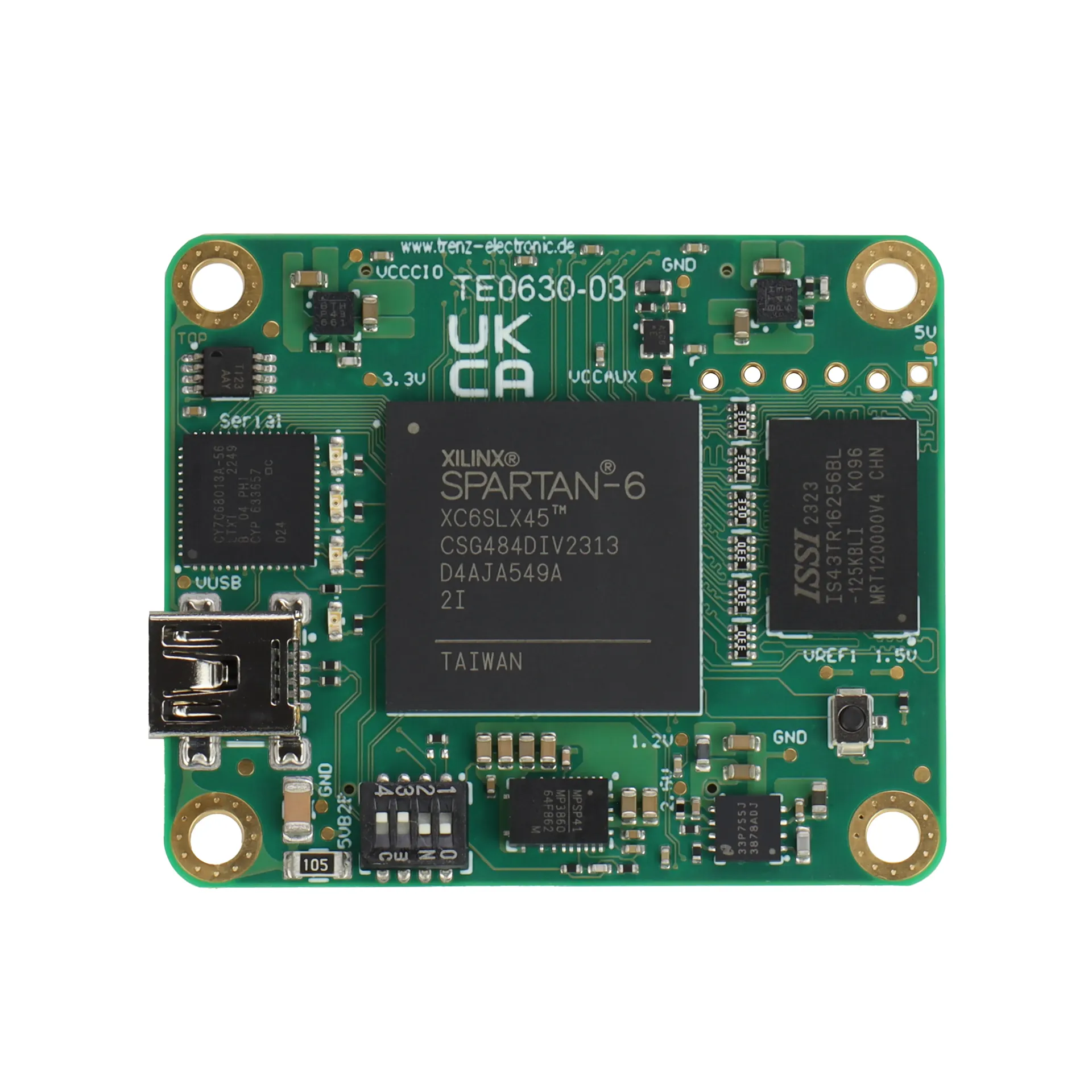

The Trenz Electronic TE0630 are industrial-grade FPGA micromodules integrating a AMD Spartan™ 6 FPGA, a mini-USB 2.0 device port, 4 GBit (512 MByte) DDR3L SDRAM with 16-Bit width, 8 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's are provided via rugged high-speed stacking connectors. The TE0630 are fully mechanically and largely electrically backward compatible with Trenz Electronic TE0300 AMD Spartan™ 3E FPGA micromodules.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC / FPGA
  • Device: AMD Spartan™ 6 XC6SLX150-2CSG484I
  • Speedgrade: -2
  • Temperature range: industrial-grade
  • Package: CSG484

• RAM / Storage
  • 16-bit-wide 4 GBit (512 MByte) DDR3L SDRAM
  • 64 Mbit (8 Mbyte) QSPI Flash memory (for configuration and operation) accessible through:
    • FPGA
    • JTAG port (SPI indirekt)
    • USB

• On Board
  • 24 MHz and 100 MHz reference clock signals
  • eFUSE bit-stream encryption (LX75 or larger)
  • 4 user LEDs
  • 1 user push-button
  • 2 user DIP switches

• Interface

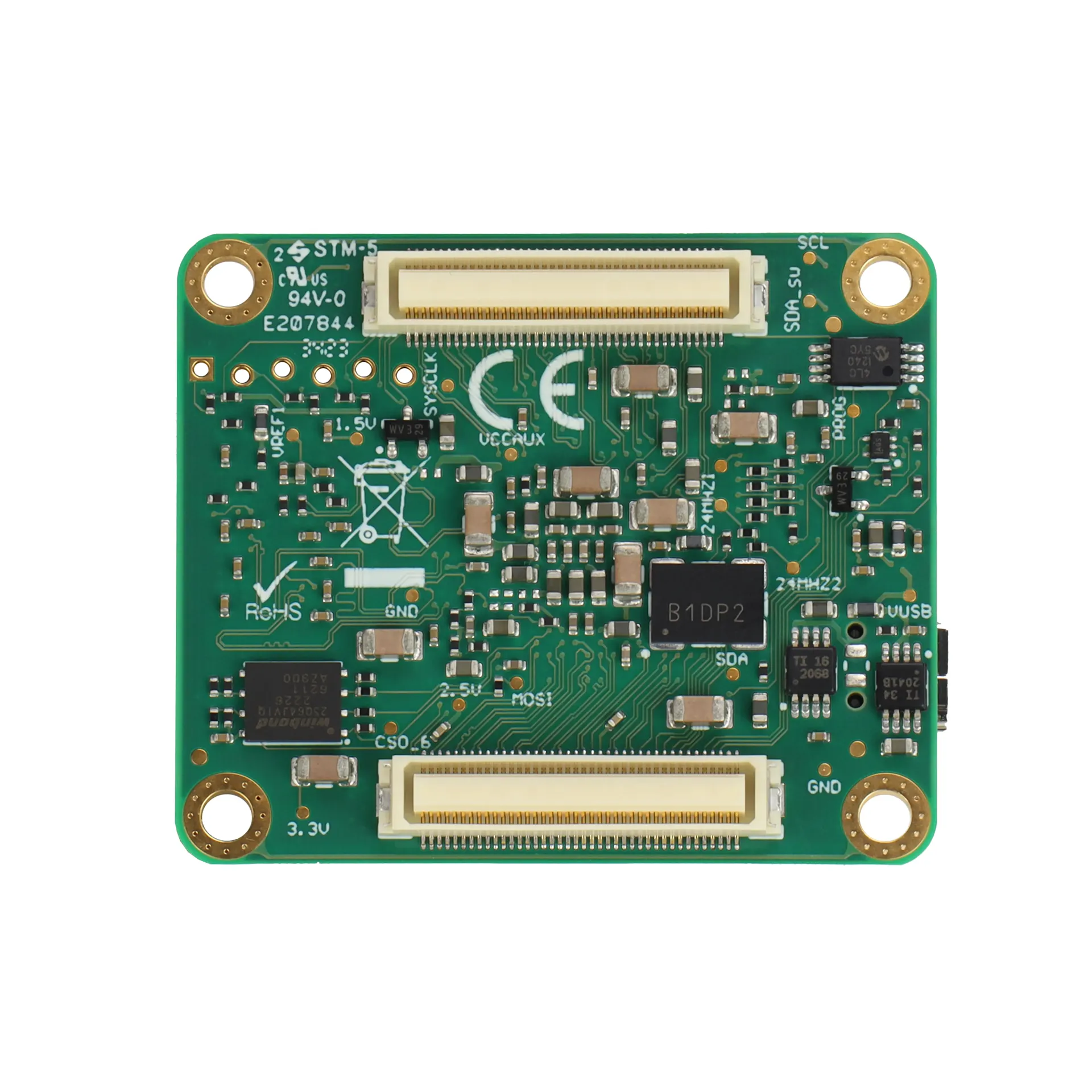

  • Plug-on module with 2 × 80 pin stacking connectors
  • Up to 40 differential and up to 109 single-ended FPGA I/O's pins available on B2B connectors
  • FPGA configuration through:
    • B2B connector
    • JTAG port
    • SPI Flash memory

• Power
  • 1.2 V, 1.5 V, 2.5 V = VCCAUX and 3.3 V power rails

• Dimension
  • 4 x 5 cm

納品物

•  1 x TE0630-03-82I22-A Trenz Electronic FPGA module with AMD Spartan™ 6 LX150 FPGA

追加情報

• Manufacturer's article number: TE0630-03-82I22-A
• Trenz Electronic TE0630 Wiki
• Support Forum
