TE0713-03-82C46-A

価格(税別)	55,800円
在庫	メーカー在庫 4個
	カートに入れる

The predecessor of this article is TE0713-02-82C46-A. All changes are in the Product Change Notification (PCN).

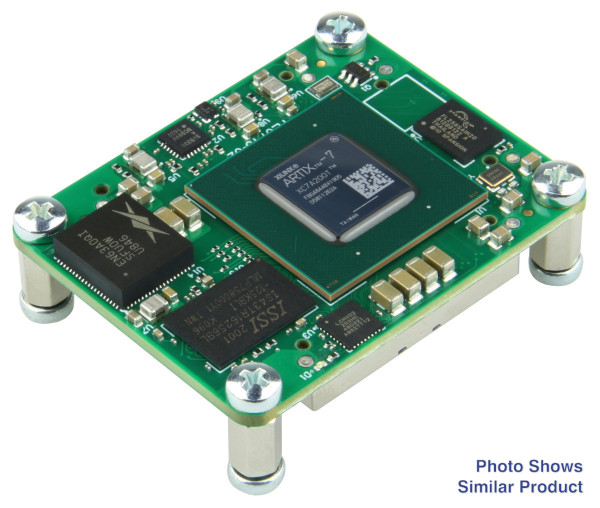

The Trenz Electronic TE0713-03-82C46-A is an industrial-grade FPGA module integrating a AMD Artix™ 7 200T FPGA, USB 3.0 to FIFO bridge, 1 GByte of DDR3L SDRAM, 32 MByte Flash memory for configuration and operation, and powerful switching-mode power supplies for all on-board voltages. Numerous configurable I/O's are provided via rugged high-speed strips.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

SoC / FPGA
- Device: AMD Artix™ 7 XC7A200T-2FBG484C
- Speedgrade: -2
- Temperature Range: Commercial
- Package: FBG484C
RAM / Speicher
- 1 GByte DDR3L SDRAM
- 32 MByte QSPI Boot Flash

On Board
- High-efficiency DC-DC converters

Interface
- USB 3.0
- 2 x 100-Pin Razor Beam Connector
- 1 x 60-Pin Razor Beam Connector

Dimension
- 4 x 5 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

1 x TE0713-03-82C46-A Trenz Electronic 4 x 5 cm FPGA module with AMD Artix™ 7 200T
8 x screws
4 x bolts

追加情報

リンク

製品名	価格(税別)
TE0713-03-82C46-A	¥55,800	カートに入れる
