TE0714-04-42I-B-L

The predecessor of this article is TE0714-04-42I-7-L. All changes are in the Product Change Notification (PCN).

This module is identical to variant TE0714-04-42I-7-B except the lower 2.5 mm Samtec connectors.

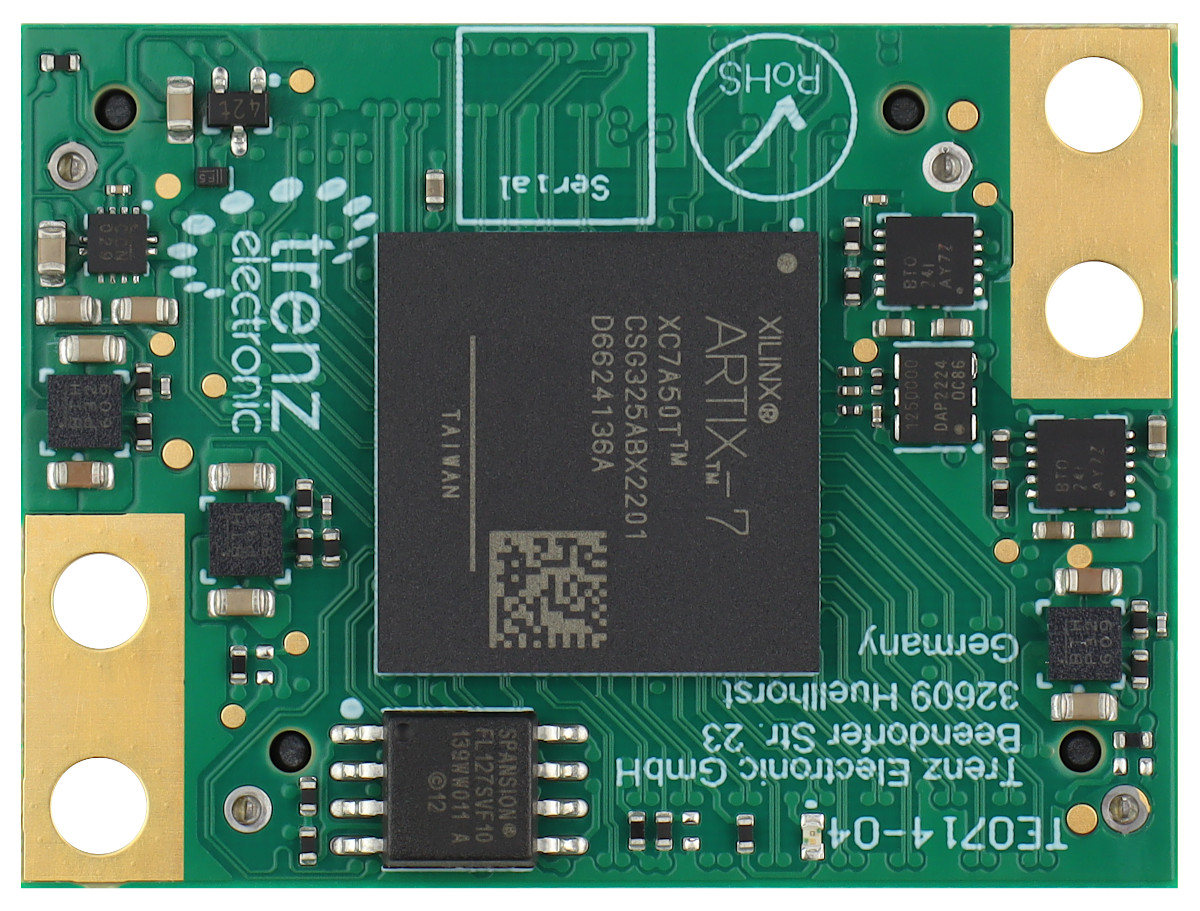

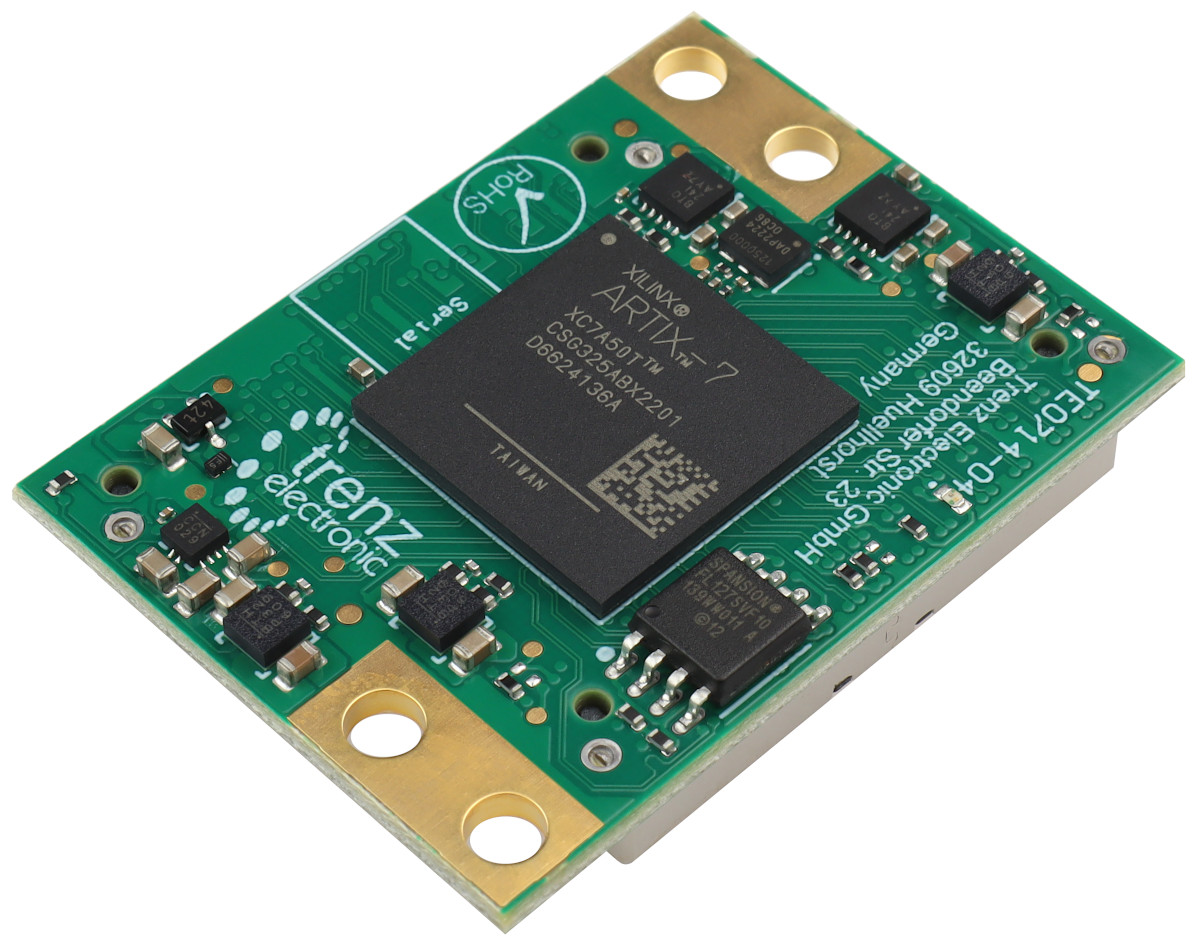

The Trenz Electronic TE0714-04-42I-B-L is an industrial-grade FPGA module integrating a AMD Artix™ 7 35T, 16 MByte QSPI Flash memory for configuration and operation and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

All this on a tiny footprint, smaller than half a credit card, at the most competitive price.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Artix™ 7 XC7A35T-2CSG325I
• Rugged for high shock and vibration
• 16 MByte QSPI Flash memory
• Differential MEMS oscillator for MGT clocking
• MEMS oscillator for PL clocks (optional)

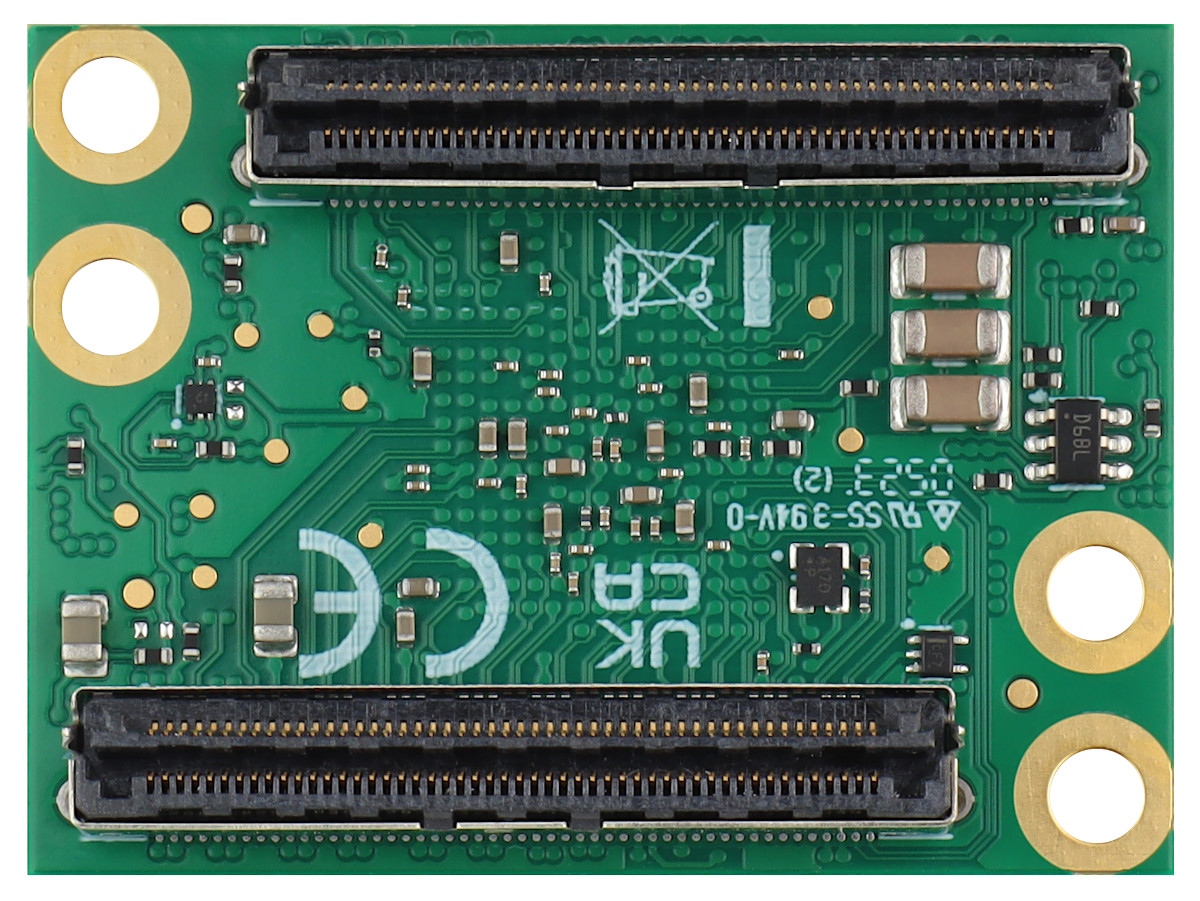

• Plug-on module with 2 × 100-pin high-speed hermaphroditic strips (low profile)

  • 138 FPGA I/O's (max 68 differential) +5 I/O's (QSPI or user I/O's)
  • XADC Analog Input
  • 4 GTP (high-performance transceiver) lanes
  • GT reference clock inputs
  • Optimized I/O and power pins for good signal integrity
• On-board high-efficiency DC-DC converters
• Power supply for all on-board components
• eFUSE bit-stream encryption (AES)
• One user configurable LED
• Size: 3 x 4 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0714-04-42I-B-L Trenz Electronic FPGA module with AMD Artix™ 7 35T, low profile
