TE0720-04-61Q86PL

This product is offered at a discount and is valid while stocks last!
____________________________________________________

The predecessor of this article is TE0720-03-61Q86PL. All changes are in the Product Change Notification (PCN).

This module is equipped with a lower 2.5 mm Samtec connector.

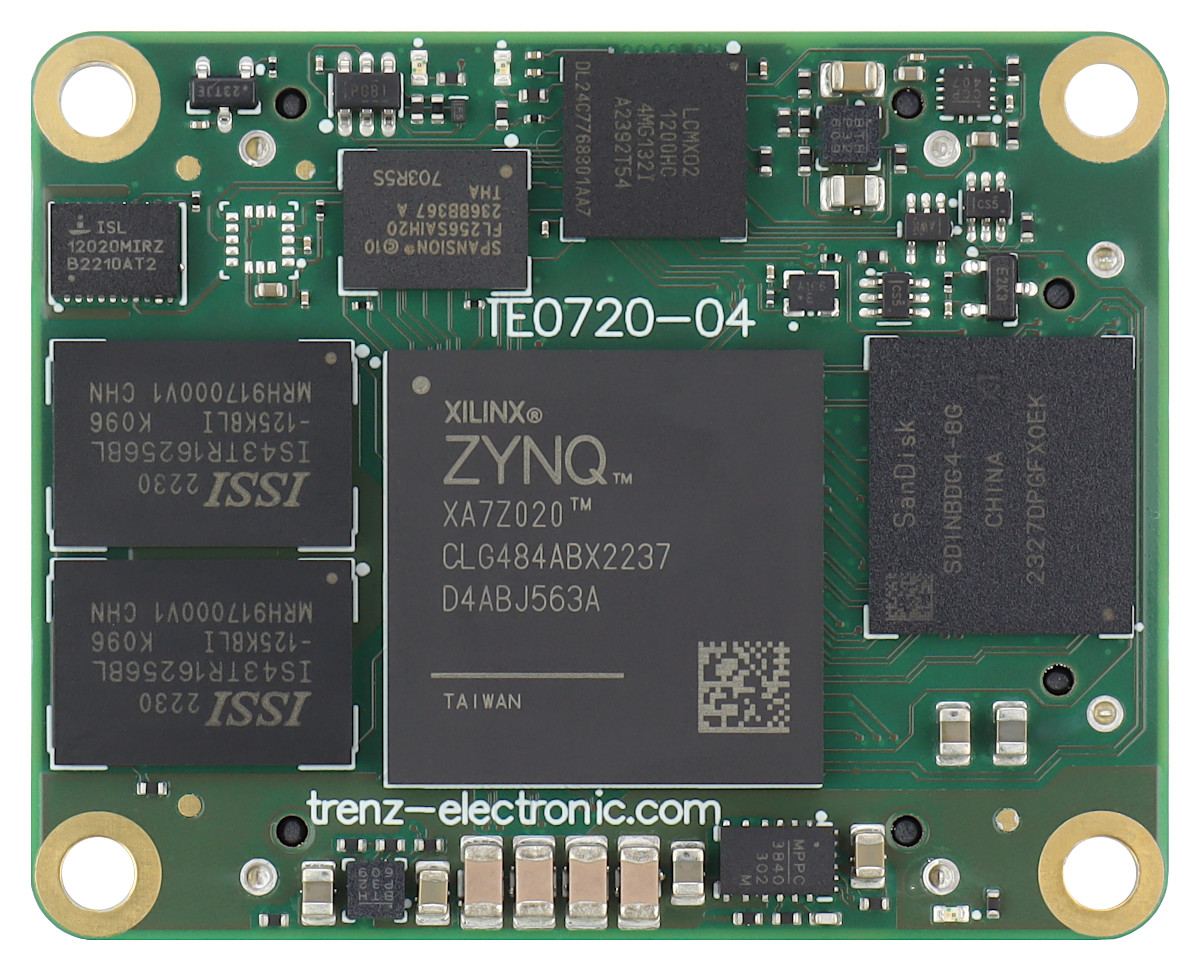

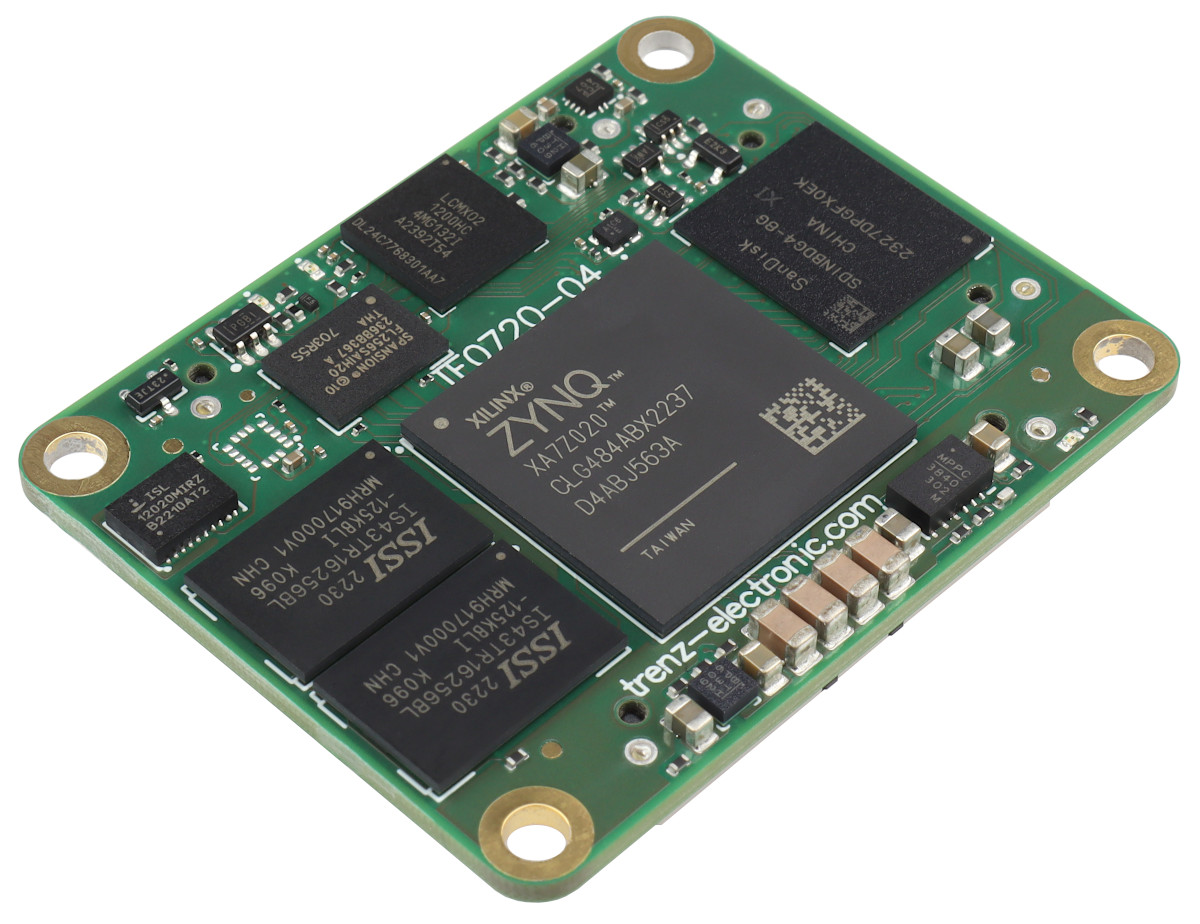

The Trenz Electronic TE0720-04-61Q86PL is an industrial-grade SoC module integrating a AMD Automotive Zynq™ 7020, a Gigabit Ethernet transceiver, 1 GByte DDR3L SDRAM (Automotive), 32 MByte Flash (Automotive) memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

特徴

• AMD Zynq™ XA7Z020-1CLG484Q (Automotive)
• Rugged for high shock and vibration
• ARM dual-core Cortex-A9 MPCore
• 10/100/1000 tri-speed Gigabit Ethernet transceiver (PHY), SGMII accessible on a board-to-board connector
• USB 2.0 high speed ULPI transceiver
• 1 GByte (32-bit) DDR3 SDRAM (Automotive)
• 32 MByte QSPI Flash memory (for configuration and operation) (Automotive)
• 8 GByte e.MMC (Automotive)

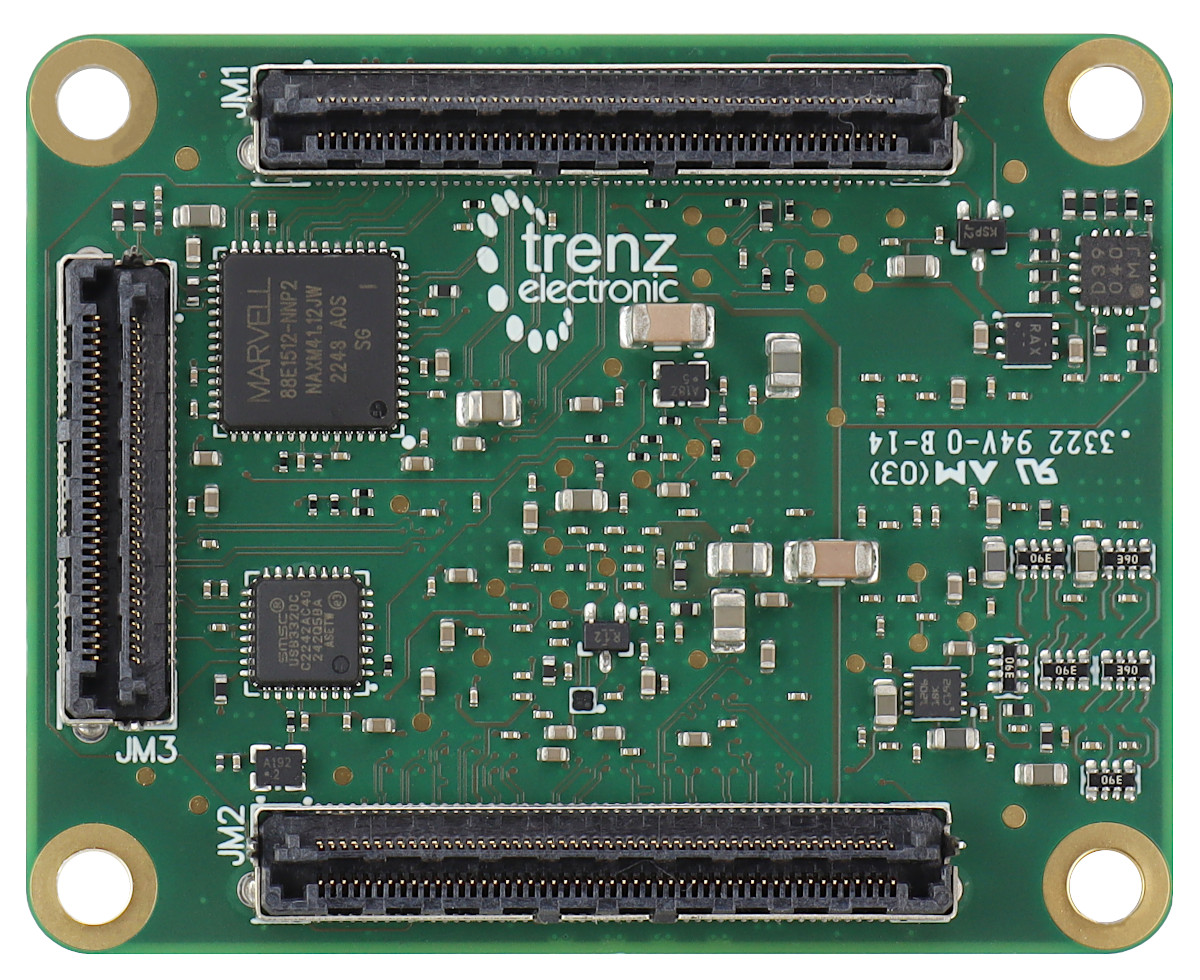

• Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (low profile 2.5 mm)
• 152 FPGA I/O's (75 LVDS pairs possible) and 14 MIO's available on board-to-board connectors
• On-board high-efficiency DC-DC converters
  • 4.0 A x 1.0V power rail
  • 3.0 A x 1.5V power rail
  • 3.0 A x 1.8V power rail
• System management and power sequencing
• eFUSE bit-stream encryption
• AES bit-stream encryption
• Valid MAC Address and 2K serial EEPROM
• SHA-256 authentication chip with unique serial number
• RTC, temperature compensated
• 3 user LEDs
• Evenly-spread supply pins for good signal integrity

Other assembly options for cost or performance optimization plus high volume prices available on request.

Depending on the customer design, additional cooling might be required.

納品物

• 1 x TE0720-04-61Q86PL Trenz Electronic 4 x 5 cm SoC module with AMD Zynq™ 7020 (Automotive), low profile

追加情報

• Manufacturer's article number: TE0720-04-61Q86PL
• Trenz Electronic TE0720 Wiki
• Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, low profile 2.5 mm,
  information concerning mating heights: Wiki, mounted on every 4 x 5 cm module from us marked with "LP" or "low profile".
• Support Forum
