TE0725-04-21C-1-A

The predecessor of this article is TE0725-03-15-1C. All changes are in the Product Change Notification (PCN).

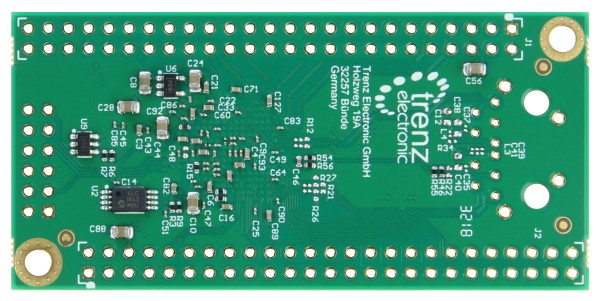

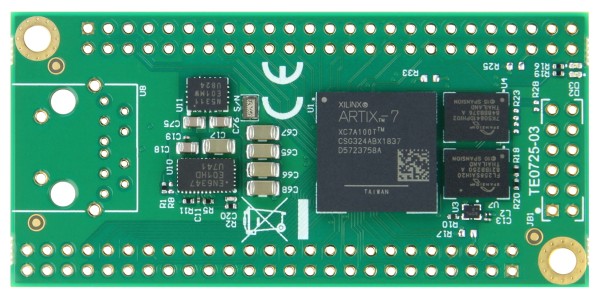

The Trenz Electronic TE0725-03-15-1C is a low cost small-sized FPGA module integrating a AMD/Xilinx Artix™ 7 15T, 8 MByte HyperRAM and 32 MByte Flash memory for configuration and operation. The 2 x 50 pin header with a 2.54 mm standard pitch fits perfect on a perfboard.

This reference design is bundled with a FREE evaluation edition of the low-cost, commercially proven, high performance memory controller IP supplied by Synaptic Laboratories Ltd (SLL). This free IP evaluation license never expires, and no customer registration or NIC ID is required.
Click here to find the latest free trials of SLL’s memory controller IP for HyperBus, OctaBus, Xccela Bus, JEDEC xSPI Profile 1.0 and JEDEC xSPI Profile 2.0 for Intel, Microchip, and AMD/Xilinx FPGA. SLL IP is also qualified for use with Trenz Electronic HS CRUVI enabled boards. Please send all sales enquiry and technical support questions for SLL’s IP to info@synaptic-labs.com.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD/Xilinx Artix™ 7 XC7A15T-1CSG324C
• Commercial temperature grade (industrial on request)
• 3.5 x 7.3 cm form factor
• 32 MByte Flash memory
• 64 Mbit (8 MByte) HyperRAM
• 2 x 50 pin headers with 2.54 mm pitch, ideal for prefboard use
• 87 I/O's (42 + 42 + 3)
• 100 MHz system clock
• I2C EEPROM
• 3.3 V single supply with on-board voltage regulators
• JTAG/UART connector
• 2 LEDs
• Optional POF Fiber Optical Adapter (125/250 MBit/s)

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

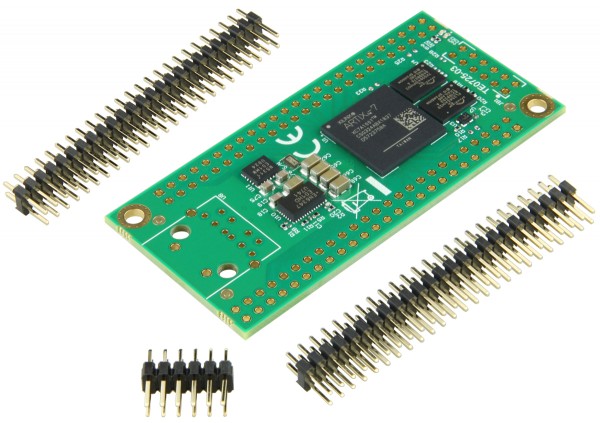

• 1 x TE0725-04-21C-1-A Trenz Electronic FPGA module with AMD/Xilinx Artix™ 7 15T
• 3 x pin header, straight, double row, for J1 and J2 as well as JB1

追加情報

• Manufacturer's article number: TE0725-04-21C-1-A
• Trenz Electronic TE0725 Wiki
• Support Forum

リンク

• オンラインドキュメント
• テクニカルリファレンスマニュアル
• 回路図
• メーカーサイト
