TE0803-04-4BI81-A

The predecessor of this article is TE0803-04-4BI21-A. All changes are in the Product Change Notification (PCN).

Note: Product modification for modules with a serial number greater than 732326. Product Change Notification (PCN).

This module will not be discontinued, but we recommend the TE0813 module series with an improved connector for new projects.

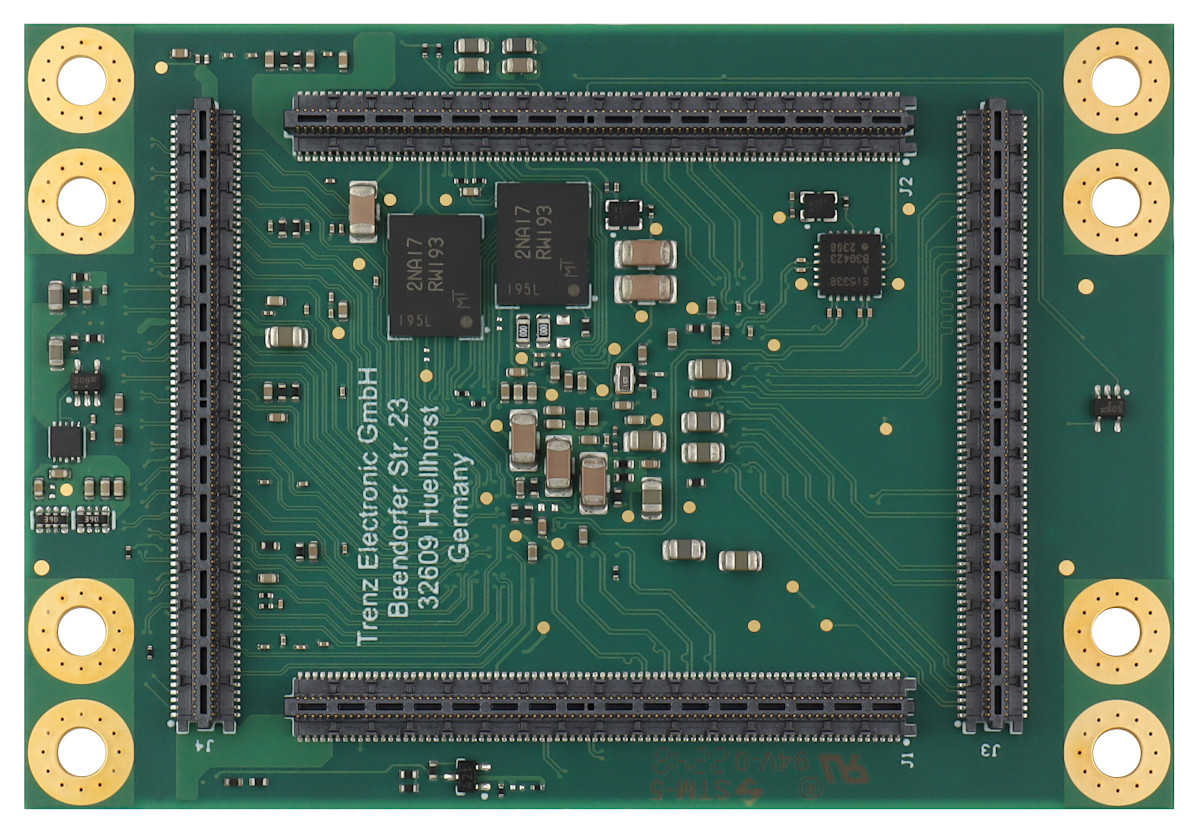

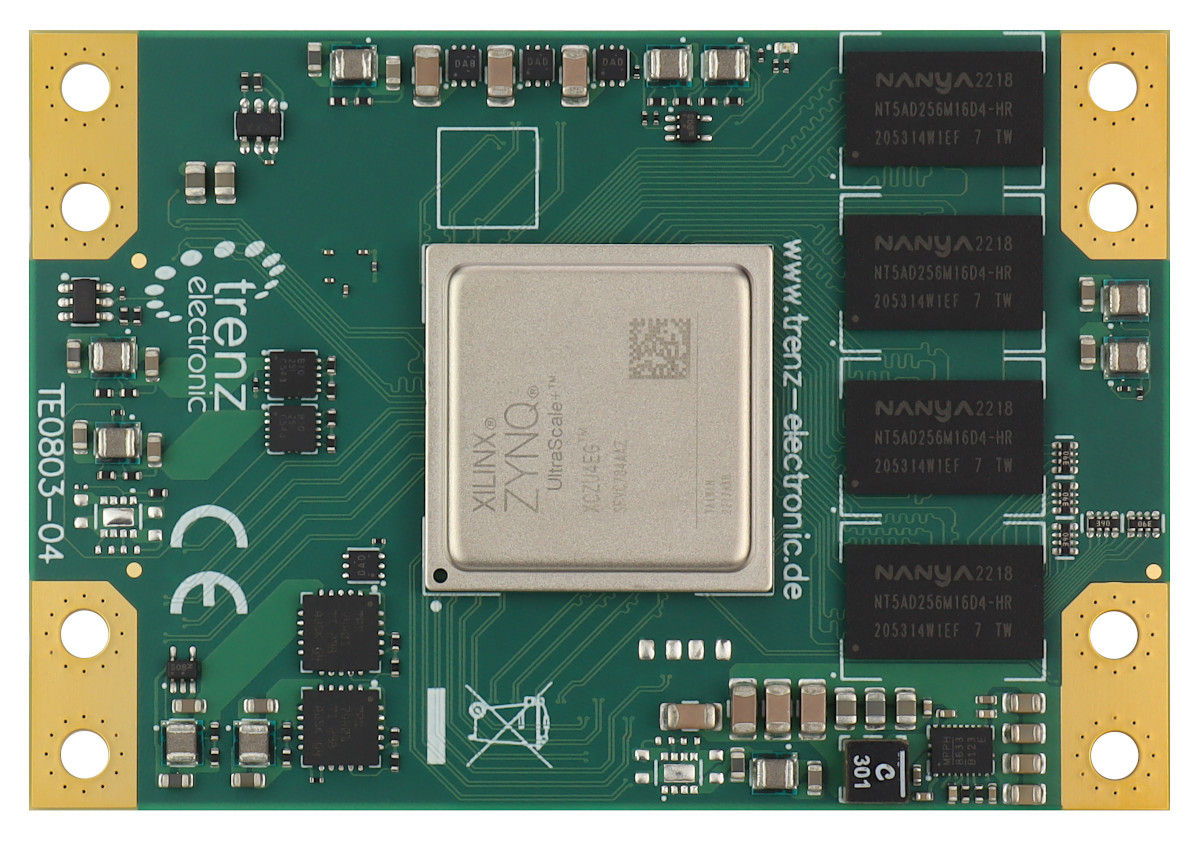

The Trenz Electronic TE0803-04-4BI81-A is an industrial-grade MPSoC module integrating a AMD Zynq™ UltraScale+™ with ZU4EG, 4 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC/FPGA
  • Device: AMD Zynq™ UltraScale+™ XCZU4EG-1SFVC784I
  • Speedgrade: -1
  • Temperature range: Industrial
  • Package: SFVC784
  • Grafikprozessor-Unit (GPU)

• RAM/Storage
  • 4 GByte DDR4 SDRAM
  • 2 c 64 MByte QSPI Boot Flash
  • 2 Kbit serial EEPROM with EUI-48 Node Identity

• On Board
  • Oscillator
  • Programmable 4-channel PLL clock generator

• Interface
  • Plug-on module with 4 x 160 pin B2B connectors (ST5)
    • 204 PL IO
      • HP: 156
      • HD: 48

    • 65 PS MIO

    • 4 PS GTR
    • 4 PL GTH
    • I2C, JTAG, CONFIG

• Power
  • 3.3V power supply required

• Dimension
  • 5.2 x 7.6 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0803-04-4BI81-A Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU4EG

追加情報

• Manufacturer's article number: TE0803-04-4BI81-A
• Trenz Electronic TE0803 Wiki
• Support Forum
