TE0813-01-4DE11-AZ

This product is offered at a discount because there is already a successor.
Only valid while stocks last!
____________________________________________________

The successor of this article is TE0813-02-4DE81-A. All changes are in the Product Change Notification (PCN).

The TE0813 is largely identical in construction to the TE0803. The essential difference are new Samtec BGA connectors, which guarantees a reliable contact. The dimensions are identical.

Please note: this module is identical to variant TE0813-01-4DE11-A, except to different DC/DCs are assembled.

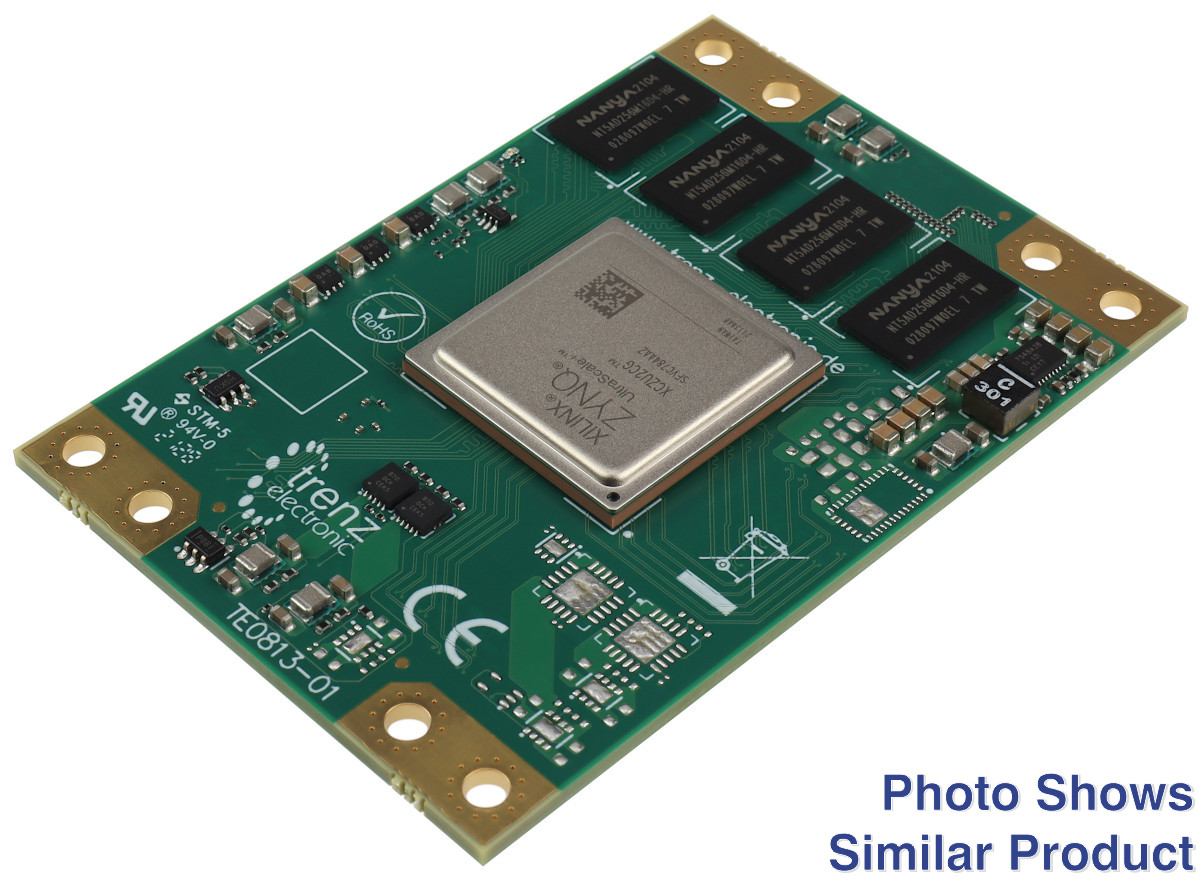

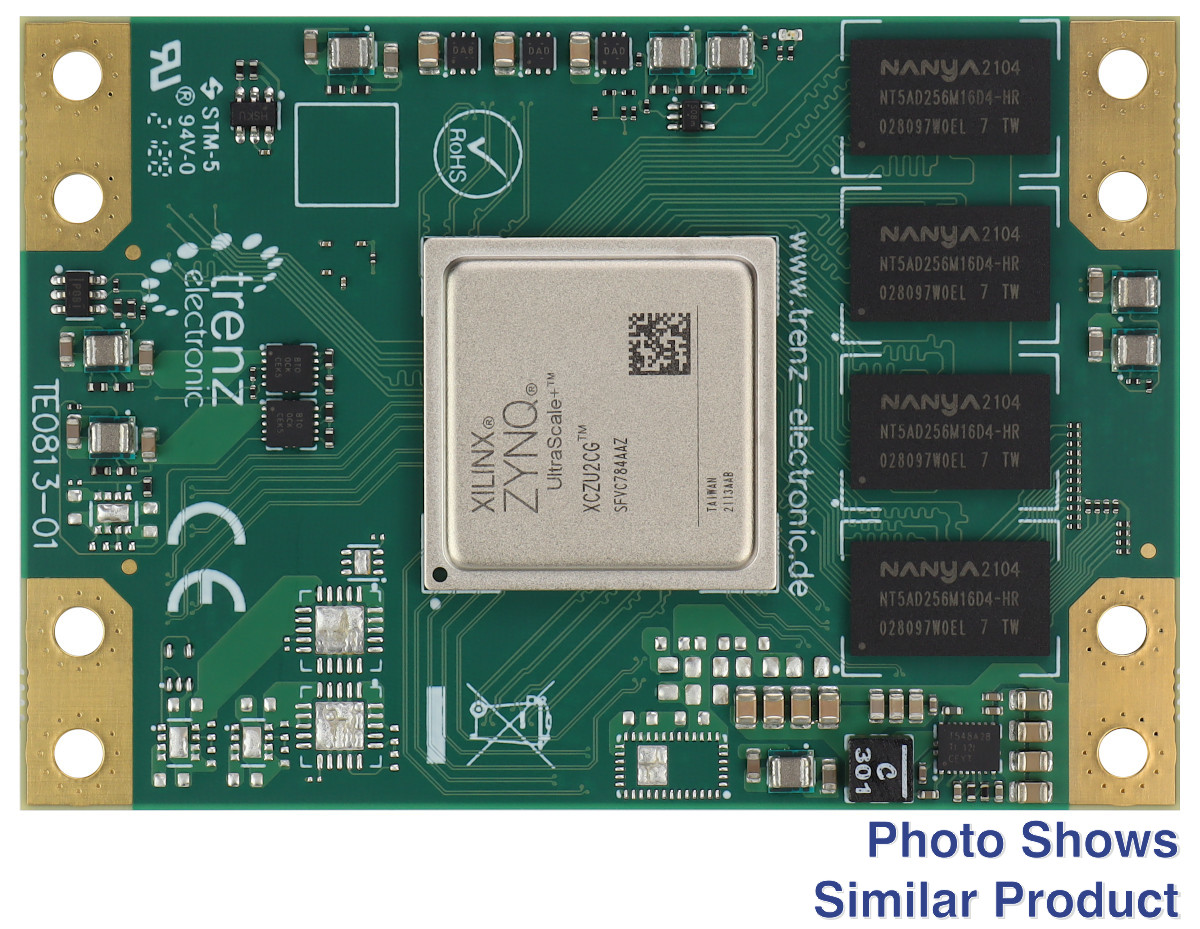

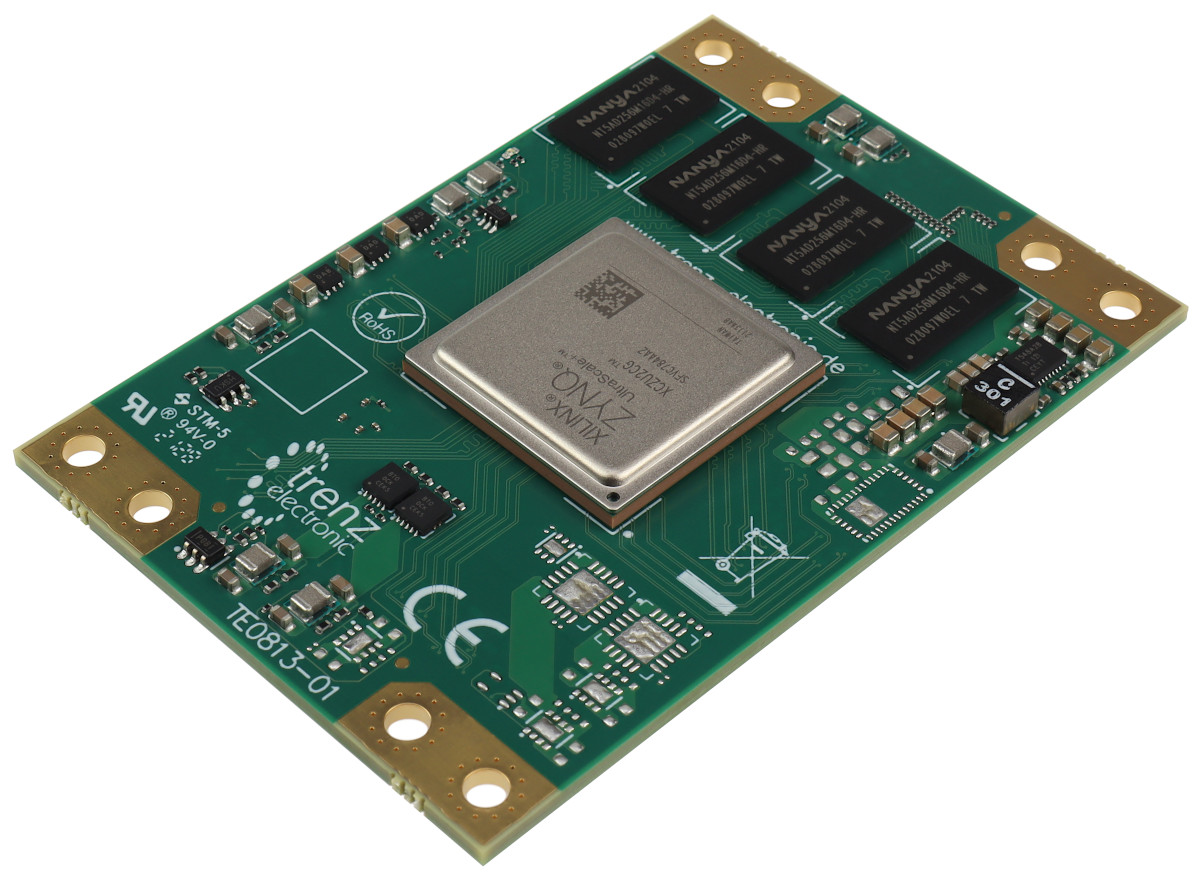

The Trenz Electronic TE0813-01-4DE11-AZ is an industrial-grade MPSoC module integrating a AMD Zynq™ UltraScale+™ with ZU4EV, 2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Zynq™ UltraScale+™ XCZU4EV-1SFVC784E
  • ZU4EV, 784 Pin Packages
  • Graphic Processing Unit (GPU) + Video codec unit (VCU)
• Dimensions: 5.2 x 7.6 cm

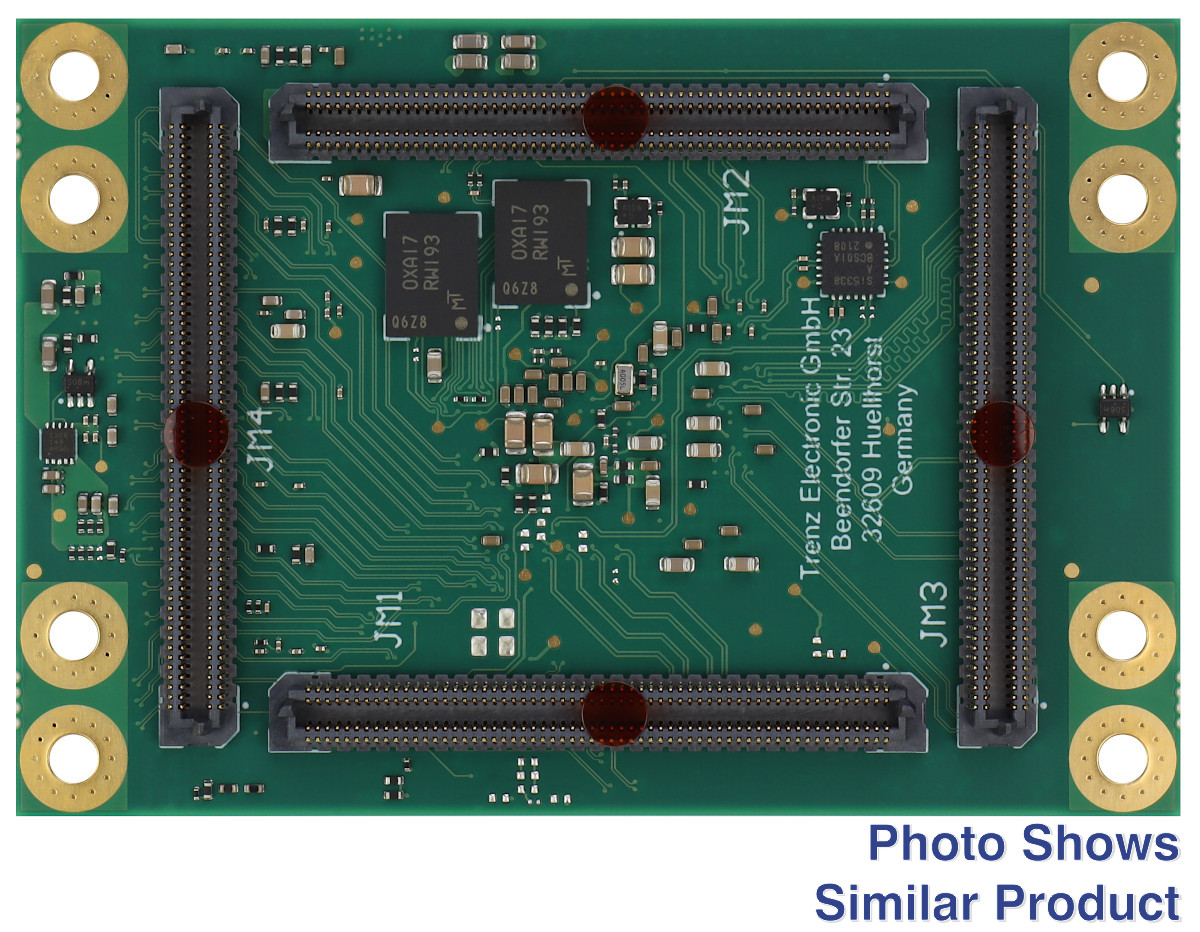

• Plug-on module with 4 x 240 pin B2B connectors
• Rugged for shock and high vibration
• 3 mm mounting holes for skyline heat spreader
• 2 GByte (64-bit width) DDR4 SDRAM
• 128 MByte QSPI Boot Flash (dual parallel)
• 2 Kbit serial EEPROM for MAC Address
• User I/O
  • 65 x multi-use I/O's (MIO)
  • 48 x High-density (HD) I/O's (2 banks)
  • 156 x high-performance (HP) I/O's (3 banks)
  • Serial transceiver: 4 x PS-GTR, 4 x PL-GTH
  • Programmable 4-channel PLL clock generator
• All power supplies on board
• Single 3.3V power source or 5V and 3.3V standby power sources required
• Evenly spread supply pins for good signal integrity

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0813-01-4DE11-AZ Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU4EV

追加情報

• Manufacturer's article number: TE0813-01-4DE11-AZ
• Trenz Electronic TE0813 Wiki
• Support Forum
