TE0817-02-7DE81-A

価格(税別)	319,800円
在庫	メーカー在庫 48個
	カートに入れる

The predecessor of this article is TE0817-01-7DE81-A. All changes are in the Product Change Notification (PCN).

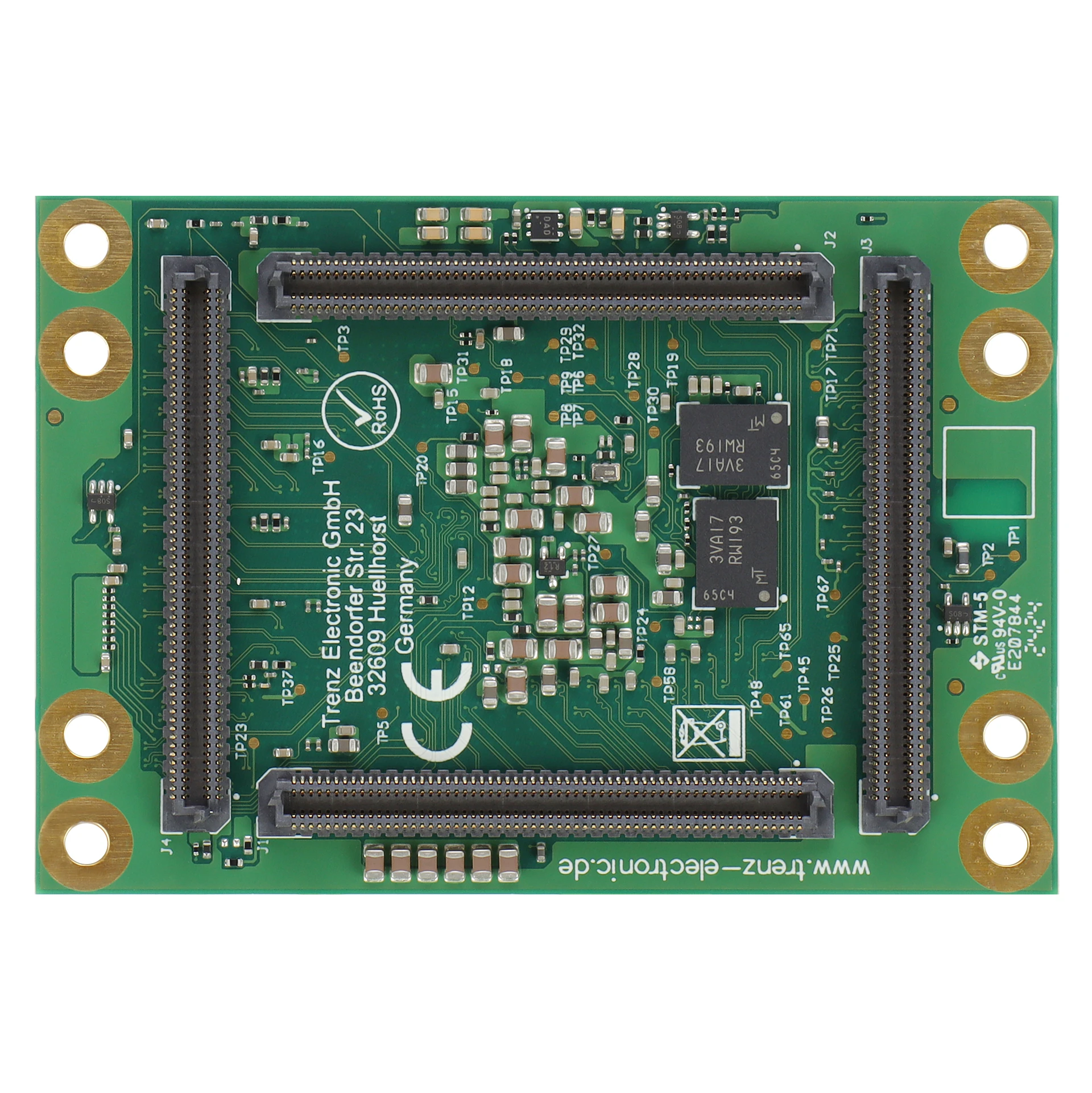

The TE0817 is largely identical in construction to the TE0807. The essential difference are new Samtec BGA connectors, which guarantees a reliable contact. The dimensions are identical.

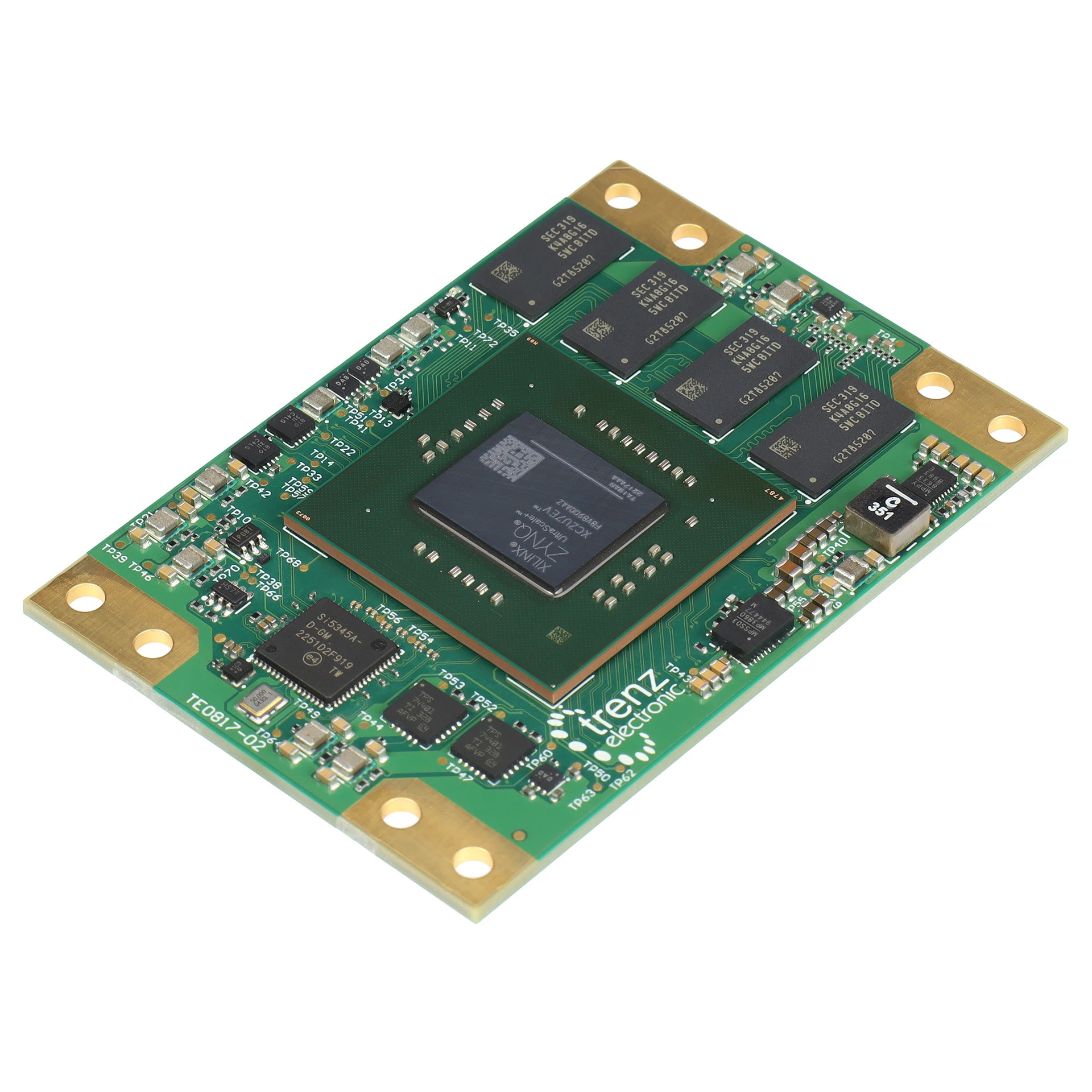

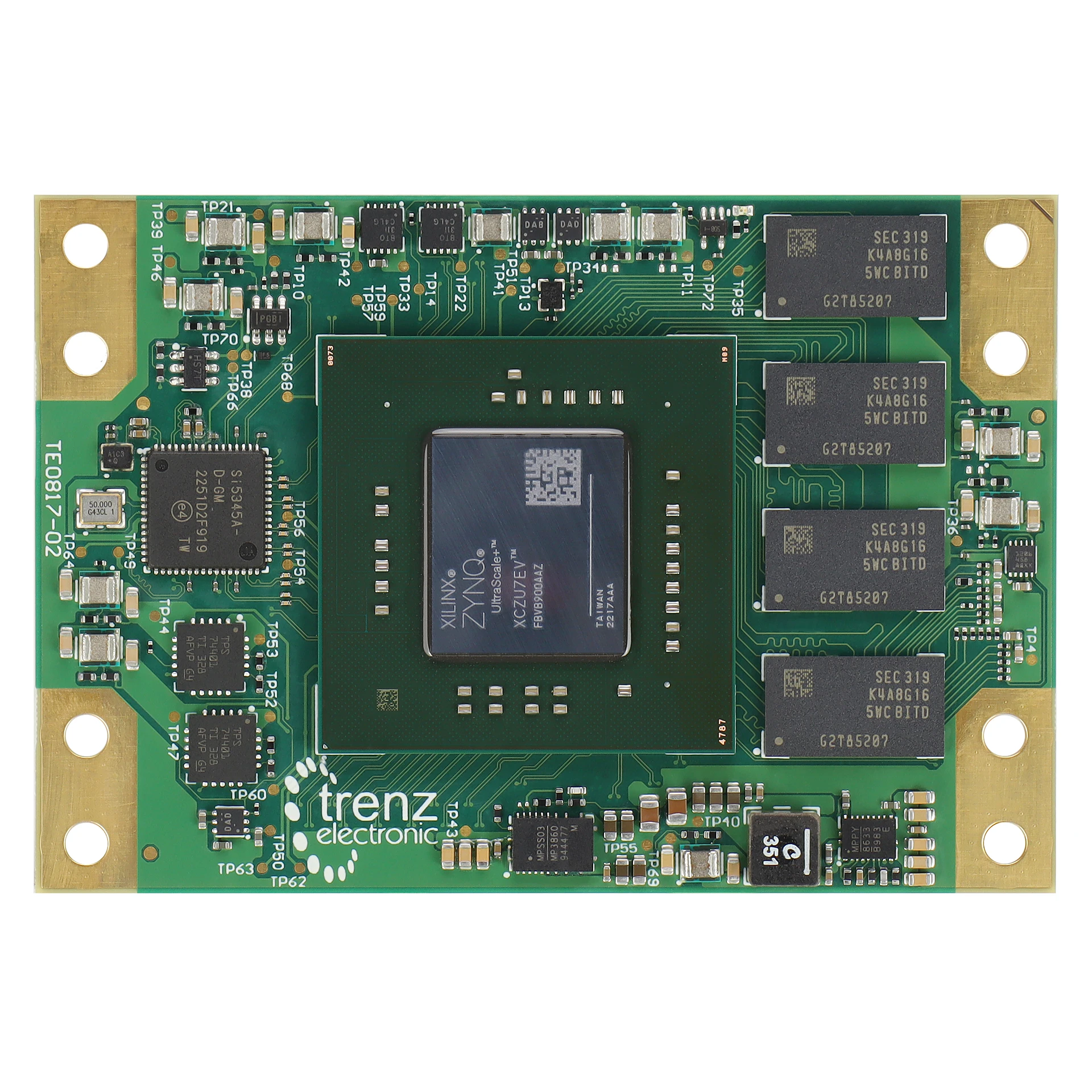

The Trenz Electronic TE0817-02-7DE81-A is a powerful MPSoC module integrating a AMD Zynq™ UltraScale+™ ZU7EV, 4 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, 20 x high speed serial transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

納品物

1 x TE0817-02-7DE81-A Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU7EV

追加情報

Manufacturer's article number: TE0817-02-7DE81-A
Trenz Electronic TE0817 Wiki
Support Forum

リンク

製品名	価格(税別)
TE0817-02-7DE81-A	¥319,800	カートに入れる
