TE0818-02-9GI81-AK

This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

The predecessor of this article is TE0818-01-9GI21-AK. All changes are in the Product Change Notification (PCN).

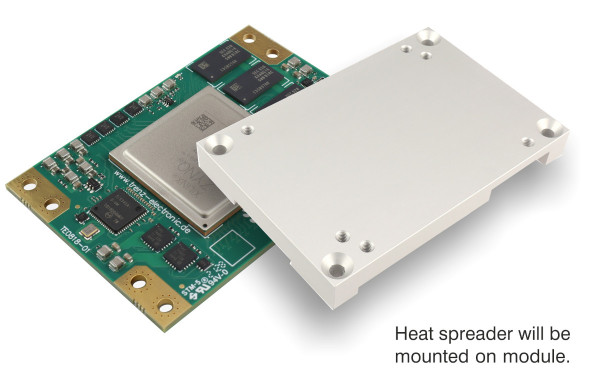

This module is a TE0818-02-9GI81-A with mounted heat spreader.

The TE0818 is largely identical in construction to the TE0808. The essential difference are new Samtec BGA connectors, which guarantees a reliable contact. The dimensions are identical.

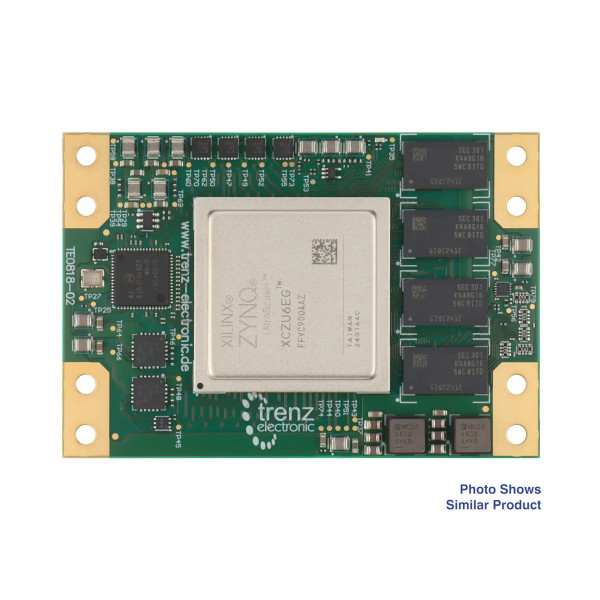

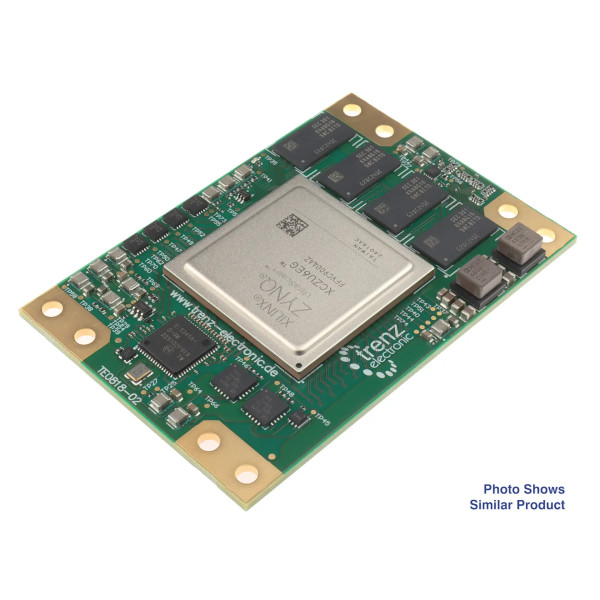

The Trenz Electronic TE0818-01-9GI21-A is a MPSoC module integrating a AMD/Xilinx Zynq™ UltraScale+™ ZU9EG, 4 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, 20 x serial high speed transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC / FPGA
  • Device: AMD/Xilinx Zynq™ UltraScale+™ XCZU9EG-2FFVC900I
  • Speedgrade: -2
  • Temperature range: Industrial
  • Package: FFVC900
  • Grafikprozessor-Unit (GPU)

• RAM / Storage
  • 4 GByte DDR4 SDRAM
  • 128 MByte SPI Boot Flash (dual parallel)
  • 2 Kbit serial EEPROM with EUI-48 Node Identity

• On Board
  • Oscillator
  • Programmable 10-channel PLL clock generator

• Interface
  • Plug-on module with 4 x 240 pin B2B connectors (ADM6)
    • 204 PL IO
      • HP: 156
      • HD: 48

    • 65 PS MIO

    • 4 PS GTR
    • 16 PL GTH
    • I2C, JTAG
  • 2 Transceiver clocks
  • PLL Clock Generator
  • LP, FP, PL separately controlled power domains

• Power
  • 14 on-board DC/DC regulators and 13 LDOs, Single Supply

• Dimension
  • 5.2 x 7.6 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0818-02-9GI81-A Trenz Electronic MPSoC module with AMD/Xilinx Zynq™ UltraScale+™ ZU9EG (industrial temperature range)
• 1 x mounted heat spreader for TE0818-02

追加情報

• Manufacturer's article number: TE0818-02-9GI81-AK
• Trenz Electronic TE0818 Wiki
• Trenz Electronic Wiki for KK0818 heat spreader
• Support Forum
