TE0835-03-TXE81-A

The predecessor of this article is TE0835-02-TXE21-A.

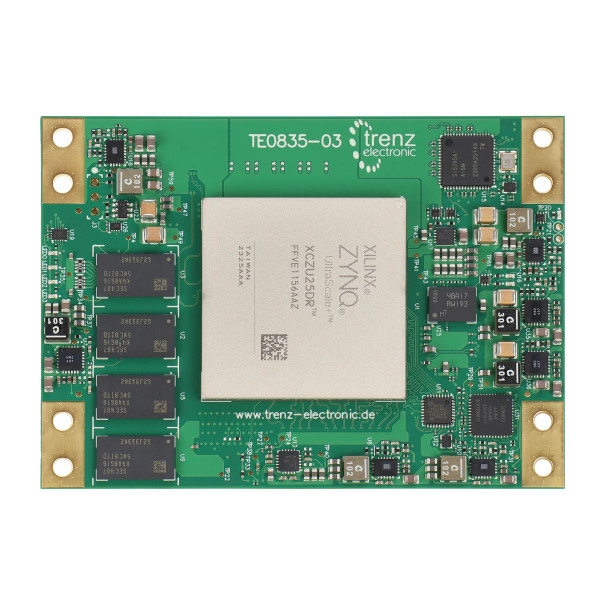

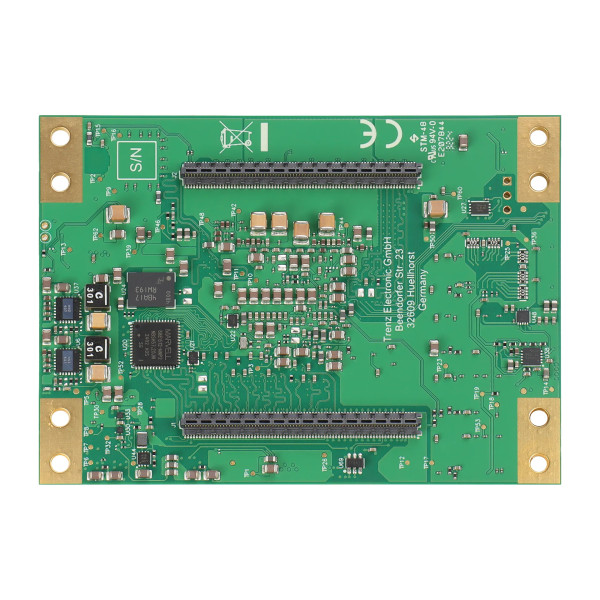

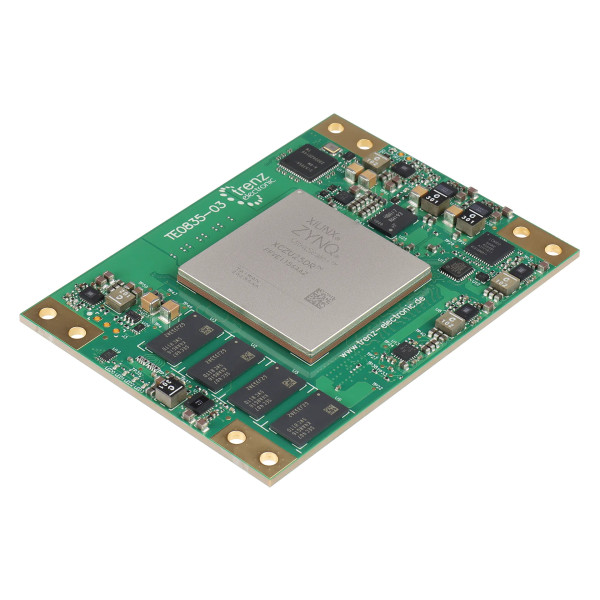

The Trenz Electronic TE0835 is an extended-grade module based on AMD Zynq™ UltraScale+™ RFSoC. The module is equipped with 4 x 1 GByte DDR4 SDRAM memory, 2 x 64 MByte SPI Flash memory, USB2.0, Ethernet transceiver and 2 x Samtec Razor Beam Board to Board (B2B) connectors. The system controller CPLD is provided by Lattice MachXO2.

The Zynq UltraScale+ RFSoC family integrates key subsystems for multiband, multi-mode cellular radios and cable infrastructure (DOCSIS) into an SoC platform that contains a feature-rich 64-bitquad-core Arm Cortex-A53 and dual-core Arm Cortex-R5 based processing system.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC / FPGA
  • Device: AMD Zynq™ UltraScale+™ RFSoC XCZU47DR-1FFVE1156E Gen3
  • Other assembly options of this series are available with devices
    • ZU25, ZU27, ZU28 (Gen1)
    • ZU43, ZU48 (Gen3)
  • Speedgrade: -1
  • Temperature range: Extended
  • Package: FFVE1156
  • Engine: Quad-core Arm Cortex-A53 MPCore up to 1.3GHz
  • 8 x 14-bit RF-ADCs with 5 GSPS
  • 8 x 14-bit RF-DACs with 9.85 GSPS

• RAM / Storage
  • 4 x 1 GByte DDR4 SDRAM
  • 2 x 64 MByte SPI Boot Flash (dual parallel)
  • 2 Kbit I2C serial EEPROM with EUI-48 Node Identity

• On Board
  • Lattice MachXO2 CPLD
  • Programmable ultra-high-performance DSPLL
  • USB2.0 OTG transceiver
  • Gigabit Ethernet transceiver
  • 3 x Oscillators
  • 4 x user LEDs

• Interface
  • 2 x Samtec Razor Beam ST5 (2 x 80 pol) Board to Board connectors
  • Total I/O: 40 IOs, 20 LVDS, 32 MIO
  • 8 x GTY
  • 4 x GTR

• Power
  • 5V +/- 10 % Input Supply Voltage

• Dimension
  • 6,5 x 9 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0835-03-TXE81-A Trenz Electronic RFSoC module with AMD Zynq™ UltraScale+™ RFSoC ZU47DR
