TE0841-03-32I31-A

The predecessor of this article is TE0841-02-32I21-A. All changes are in the Product Change Notification (PCN).

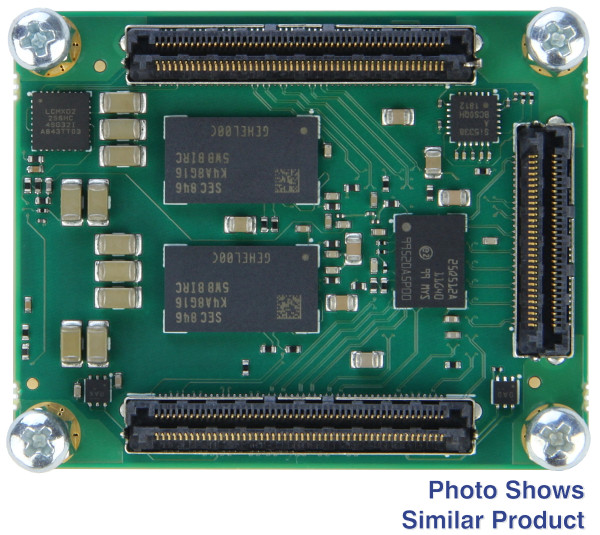

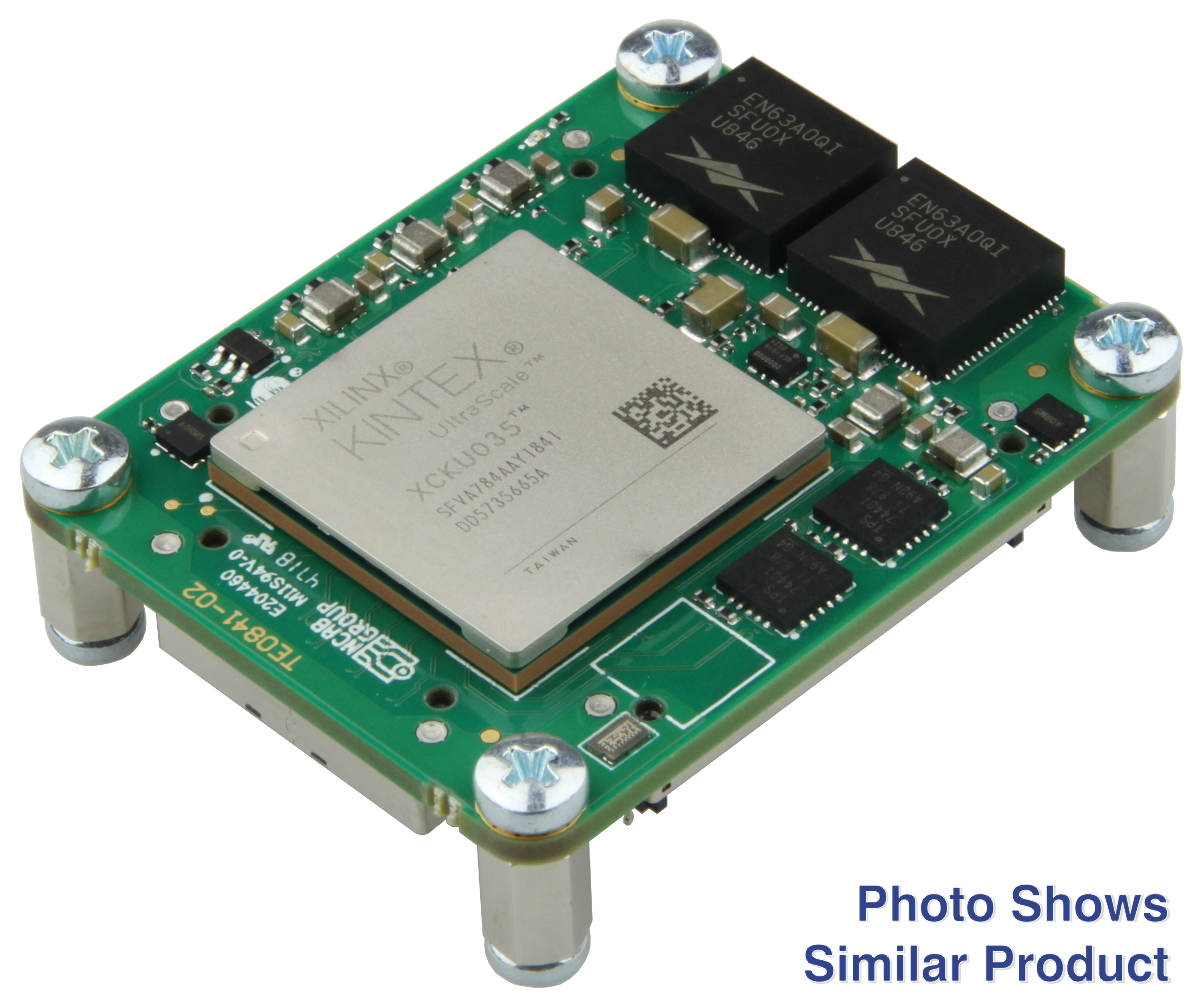

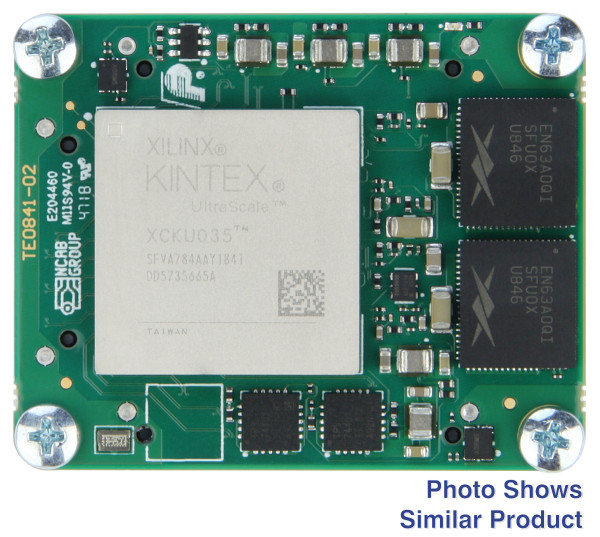

The Trenz Electronic TE0841-03-32I31-A is a powerful FPGA module integrating a AMD Kintex™ UltraScale™ KU035, 2 GByte DDR4, 64 MByte QSPI Boot Flash for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking strips.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Kintex™ UltraScale™ KU035 XCKU035-2SFVA784I
• Rugged for industrial application
• Size: 40 x 50 mm
• 3 mm mounting holes for skyline heat spreader
• 2 banks of 1024 MByte DDR4 SDRAM, 32bit wide memory interface (each DDR 16bit separate)
• 64 MByte (512 MBit) QSPI boot Flash
• B2B Connectors: 3 x Razor Beam High-Speed Hermaphroditic Terminal/Socket Strips (regular 4 mm), total 260 terminals
• 60 x HR I/Os
• 84 x HP I/Os
• Serial transceiver: GTH 8 lanes (TX/RX)
• 2 x MGT external clock inputs
• Clocking

  • Si5338 - 4 output PLL, GT and PL clocks
  • 200 MHz LVDS oscillator
• Power
  • All power supplies on board, single supply operation supported
  • User defined IO-Bank power
• Evenly spread supply pins for good signal integrity



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0841-03-32I31-A Trenz Electronic 4 x 5 cm FPGA module with AMD Kintex™ UltraScale™ XCKU035 (industrial temperature range)
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer's article number: TE0841-03-32I31-A
• Trenz Electronic TE0841 Wiki
• Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
  overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic
• Support Forum
