TEF0008-02-D

The predecessor of this article is TEF0008-02. All changes are in the Product Change Notification (PCN).

Important: Information for all serial numbers greater than 844880.

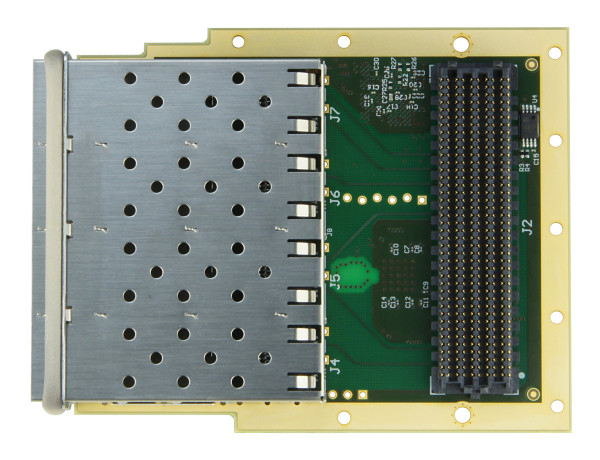

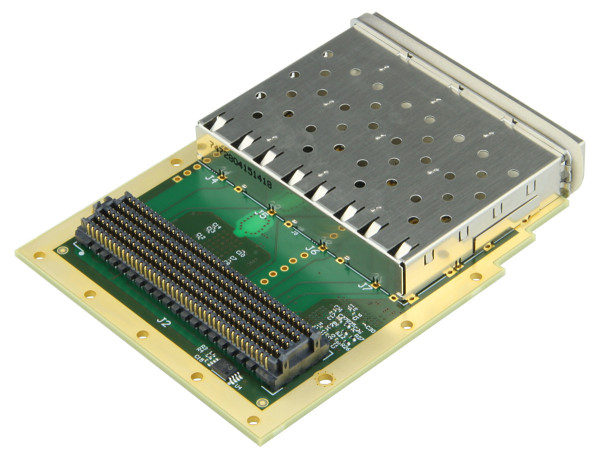

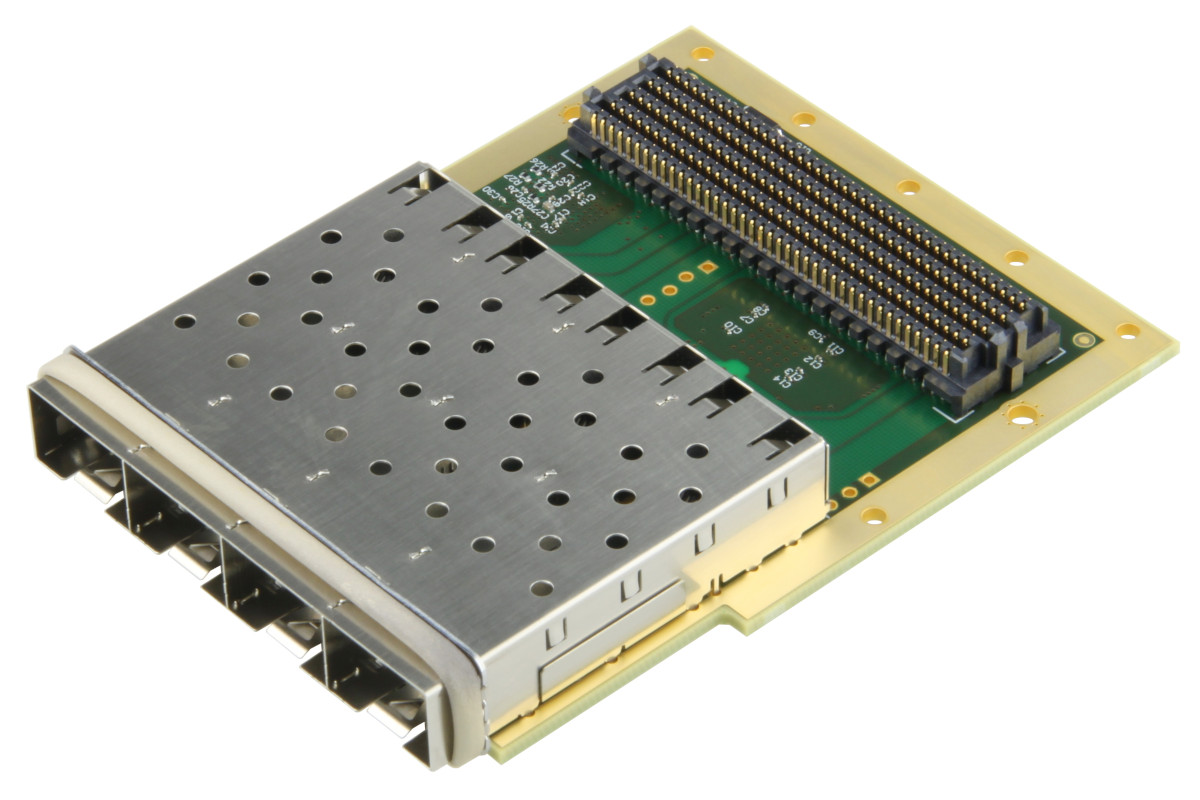

The Trenz Electronic TEF0008 is a FPGA to Mezzanine Card (FMC) based on VITA 57.1 FMC HPC Standard, with four SFP+ 10 Gbit ports for fiber optical SFP modules. It is inteded for use on a FMC HPC carrier and can not be used stand-alone.

The front panel is only offered as an additional accessory.

Mounting holes near the front pannel are not implemented due to physical restrictions caused by the SFP cage. The dimensions exceed in some area the by Vita 57.1 standard defined dimensions. In the middle region of the card the cage is higher than the specified max high for this area. Check carefully if the carrier card uses this space for other components conflicting mechanical. The bottom side is at the high limit.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• Four SFP+ 10 Gbit ports
• HPC FMC connector
• Low jitter programmable clock generator
• Intel MAX10 FPGA 10M08SAU169C8G
• 3.3 V to 1.8 V DC/DC converter
• 128 Kbit EEPROM
• Status LED (green)
• Dimension: 69 x 84 mm, SFP+ connector excluded (+ 5.5 mm)
• Highest part on PCB top is 9.5 mm (SFP+ cage, excluded front plate), bottom 1.4 mm (MAX10 FPGA)

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TEF0008-02-D Trenz Electronic FMC card

追加情報

• Manufacturer's article number: TEF0008-02-D
• Trenz Electronic TEF0008 Wiki
• Support Forum
