TEF1001-03-G2IX4-K

The predecessor of this article is TEF1001-03-G2IX4-A. All changes are in the Product Change Notification (PCN).

Note: Carrier without pads for conduction cooling!

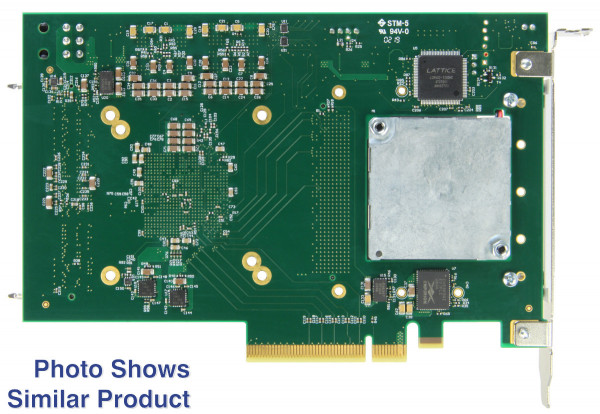

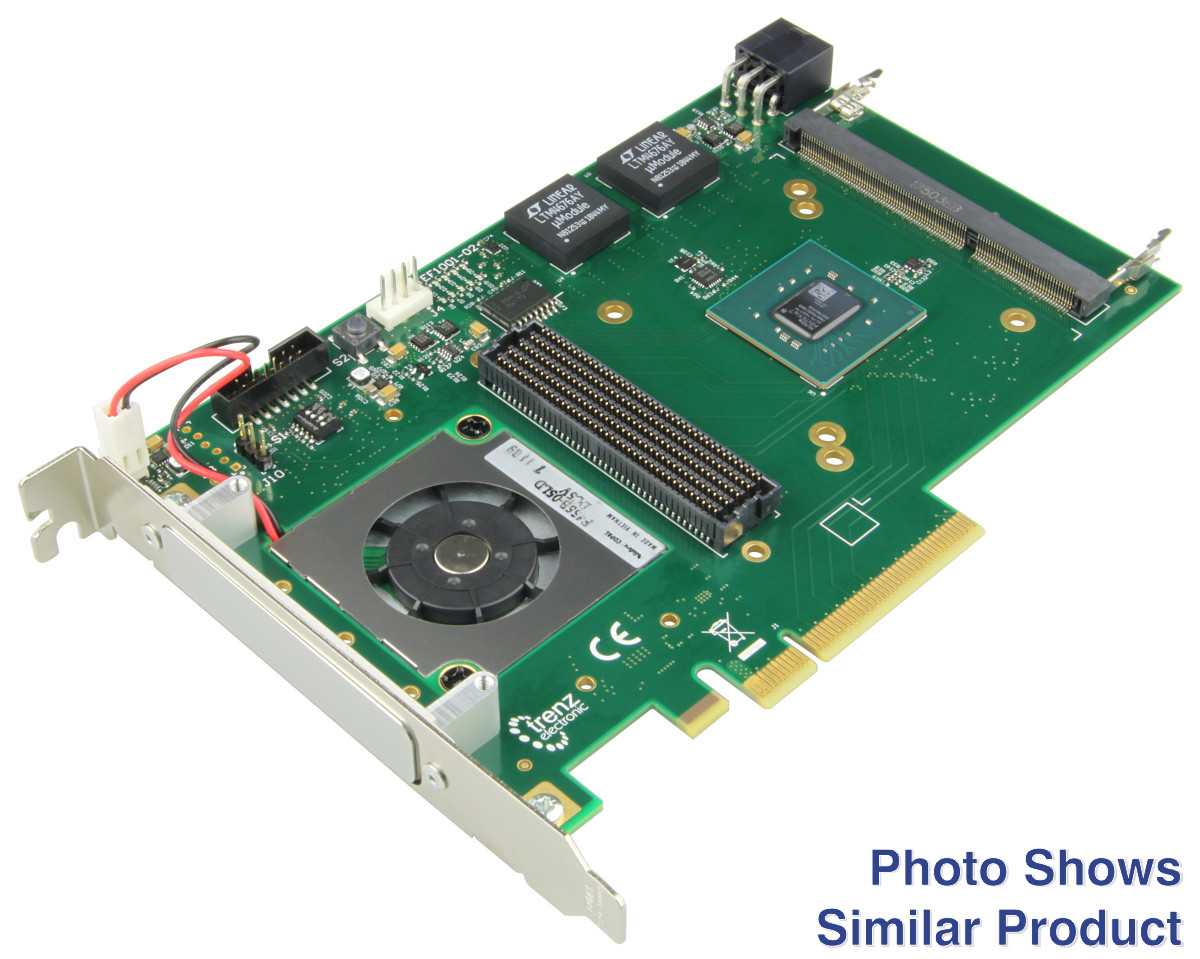

The Trenz Electronic TEF1001-03-G2IX4-K is a PCIe FMC Carrier integrating an AMD Kintex-7 410T FPGA, 32 MByte SPI Flash, a 4 lane PCIe and a DDR3 SODIMM with ECC Socket.

It can also be equipped with Kintex-7 160T or K325T, please ask for minimum quantities.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Kintex-7 XC7K410T-2FBG676I FPGA SoC
• Speed Grade 2, FBG676 Package: max. GTX transceiver rate: 6,6 Gb/s
• Large number of configurable I/Os are provided via HPC FMC connector

  • 4 GTX high-performance transceiver
  • 2 x MGT transceiver clock inputs
  • 160 FPGA I/O's (80 LVDS pairs)
• On-board high-efficiency switch-mode DC-DC converters
• Lattice MachXO2 LCMXO2-1200HC System Controller CPLD
• 10 x User LEDs
• PCI Express x8 connector with 4 lane PCIe Gen 2 interface
• ANSI Vita 57.1 FMC High Pin Count (HPC) connector
• DDR3 SODIMM SDRAM with ECC socket with 64bit databus width
• 256Mbit (32MByte) Quad SPI Flash memory (for configuration and operation) accessible through:

  • FPGA
  • JTAG port (SPI indirect, bus width x4)
• FPGA configuration through:

  • JTAG connector
  • Quad SPI Flash memory
• Clocking

  • Si5338 programmable quad PLL clock generator - 4 outputs for MGT and PL clocks
  • 200MHz oscillator for DDR3 bank
• System management and power sequencing



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TEF1001-03-G2IX4-K Trenz Electronic PCIe FMC Carrier with AMD Kintex-7 410T FPGA
• with mounted heat sink (Article no. 34455)

追加情報

• Manufacturer's article name: TEF1001-03-G2IX4-K
