TEP0001-02-A


価格(税別)4,180
在庫メーカー在庫 0個
カートに入れる

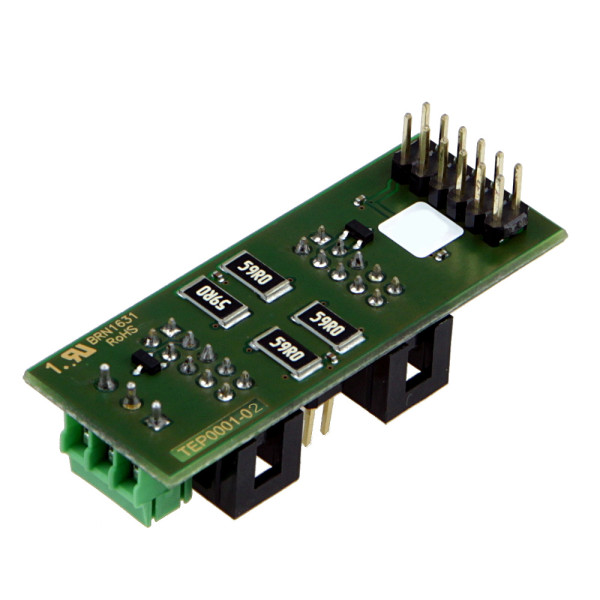

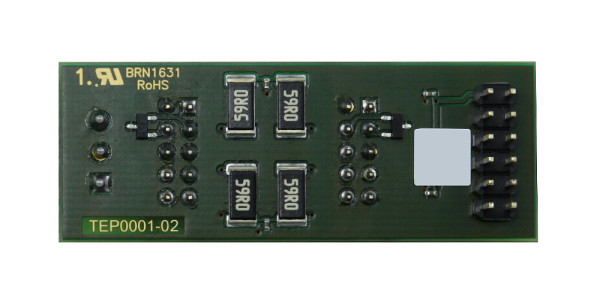

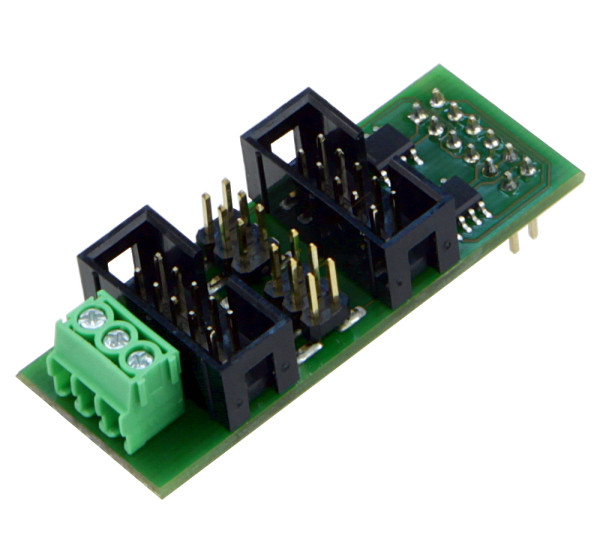

The Trenz Electronic TEP0001-02-A is an industrial-grade dual CAN FD transceiver, compatible with Digilent's Pmod interfaces.

特徴

  • Dual CAN FD PHY's (CAN0 and CAN1)
    • Texas Instruments TCAN337G
    • Up to 5 MBit data rate
    • Compatible with ISO 11898-2
    • Bus pin fault protection of ±14 V
    • Integrated 12 kV IEC-61000-4-2 ESD contact discharge protection
    • 10 pin headers (IDC cable to DB9)
    • One CAN FD transceiver has extra 3-pin screw connector terminal
  • Single 3.3 V supply
  • Module size: 54 mm × 20.5 mm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

  • 1 x TEP0001-02-A Trenz Electronic CAN-FD Transceiver

追加情報


リンク



製品名 価格(税別)
TEP0001-02-A ¥4,180カートに入れる
