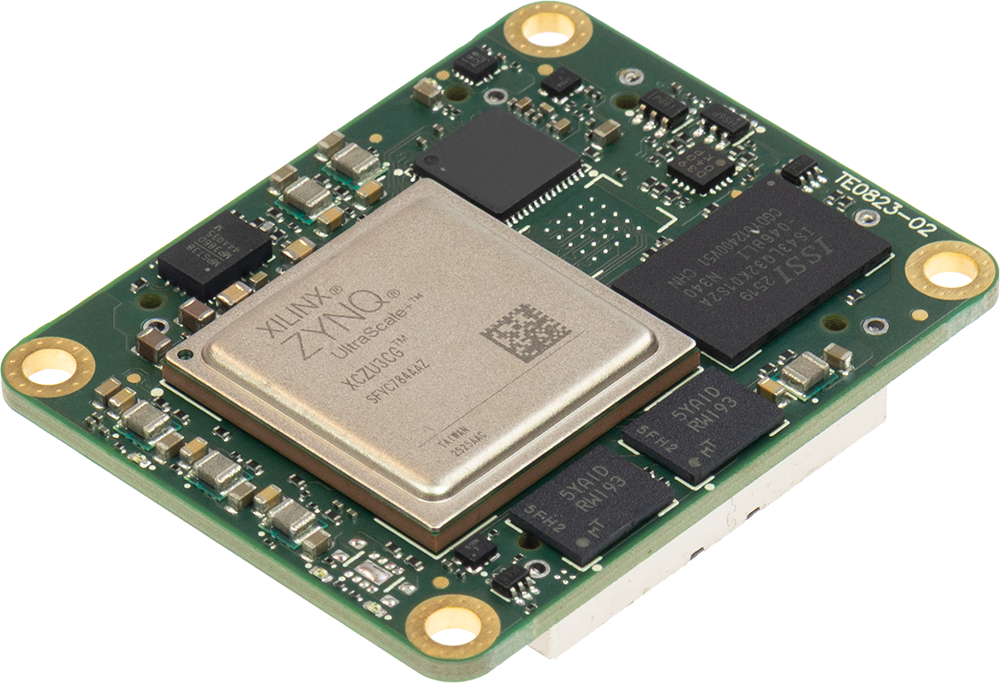

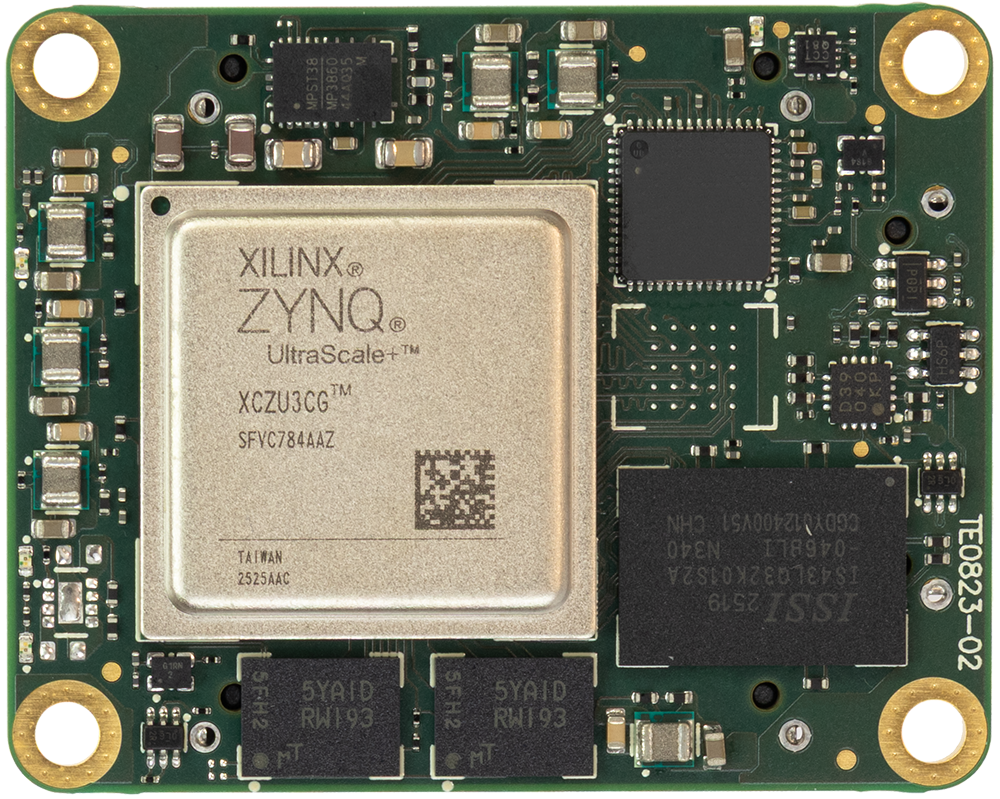

TE0823-02-3PIT1MA

価格(税別)	141,800円
在庫
	カートに入れる

特徴

General
- Rugged for shock and high vibration
- Evenly spread supply pins for good signal integrity
- Plug-on module with 2x 100 pin and 1x 60 pin Razor Beam High-Speed hermaphroditic headers for high speeds (regular 4 mm)

Main FPGA / SoC
- AMD Zynq™ UltraScale+™ XCZU3CG-L1SFVC784I (Low Power)
- Device: ZU3
- Engine: CG
- Speedgrade: -1L (also non-low power assembly options possible)
- Temperature range: industrial
- Package: SFVC784

Memory
- 2x 64 MByte QSPI Flash
- 1x 4 GByte LPDDR4 SDRAM
- 1x 256 MByte OctalRAM (optional)
- 8 GByte eMMC memory
- 1x 2 kBit EEPROM for MAC adress

Interfaces
- 132x HP PL IO
- 14x PS MIO
- 4x GTR MGT + 1x CLK
- JTAG

ON-Board Peripherals
- 1x GBit ETH PHY
- 1x USB 2.0 ULPI PHY, OTG capable
- SiTime configurable clock generator
- SiTime 33.33333 MHz clock
- 4x LEDs

System Controller
- Lattice LCMX02

Size
- 4 x 5 cm

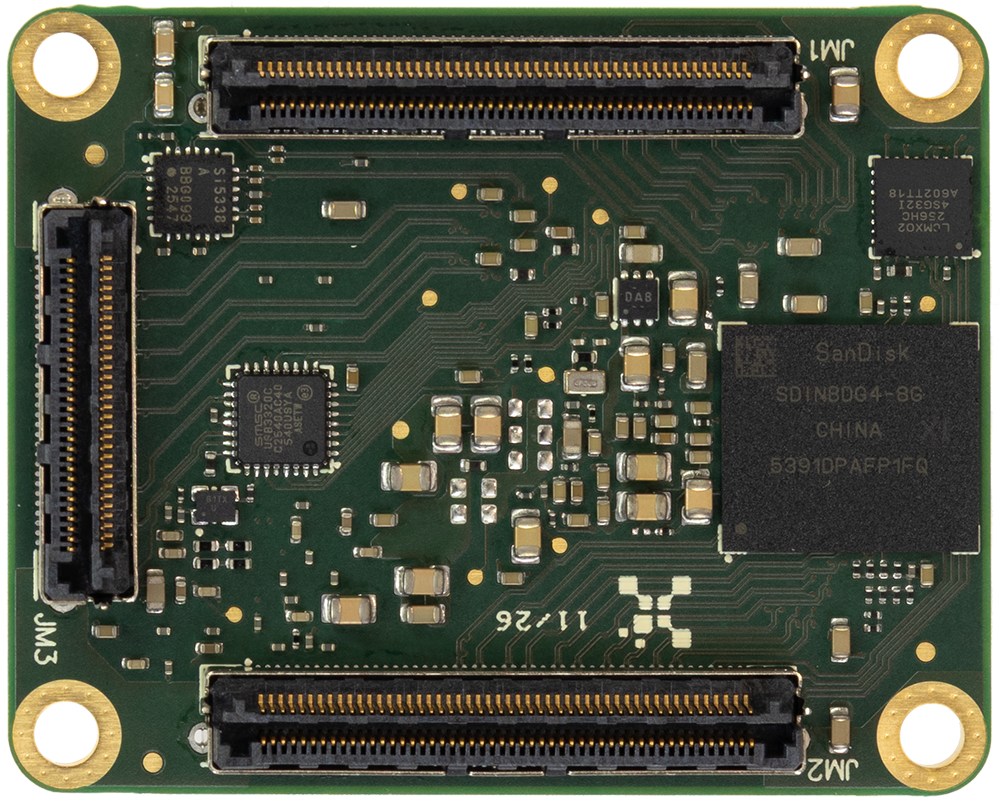

B2B Connectors
- 3x Samtec LSHM socket

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

1 x TE0823-02-3PIT1MA Trenz Electronic MPSoC Module with AMD Zynq™ UltraScale+™ ZU3CG (Low Power)
8 x screws
4 x bolts

追加情報

Manufacturer's article number: TE0823-02-3PIT1MA
Trenz Electronic TE0823 Wiki
Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic
Support Forum
