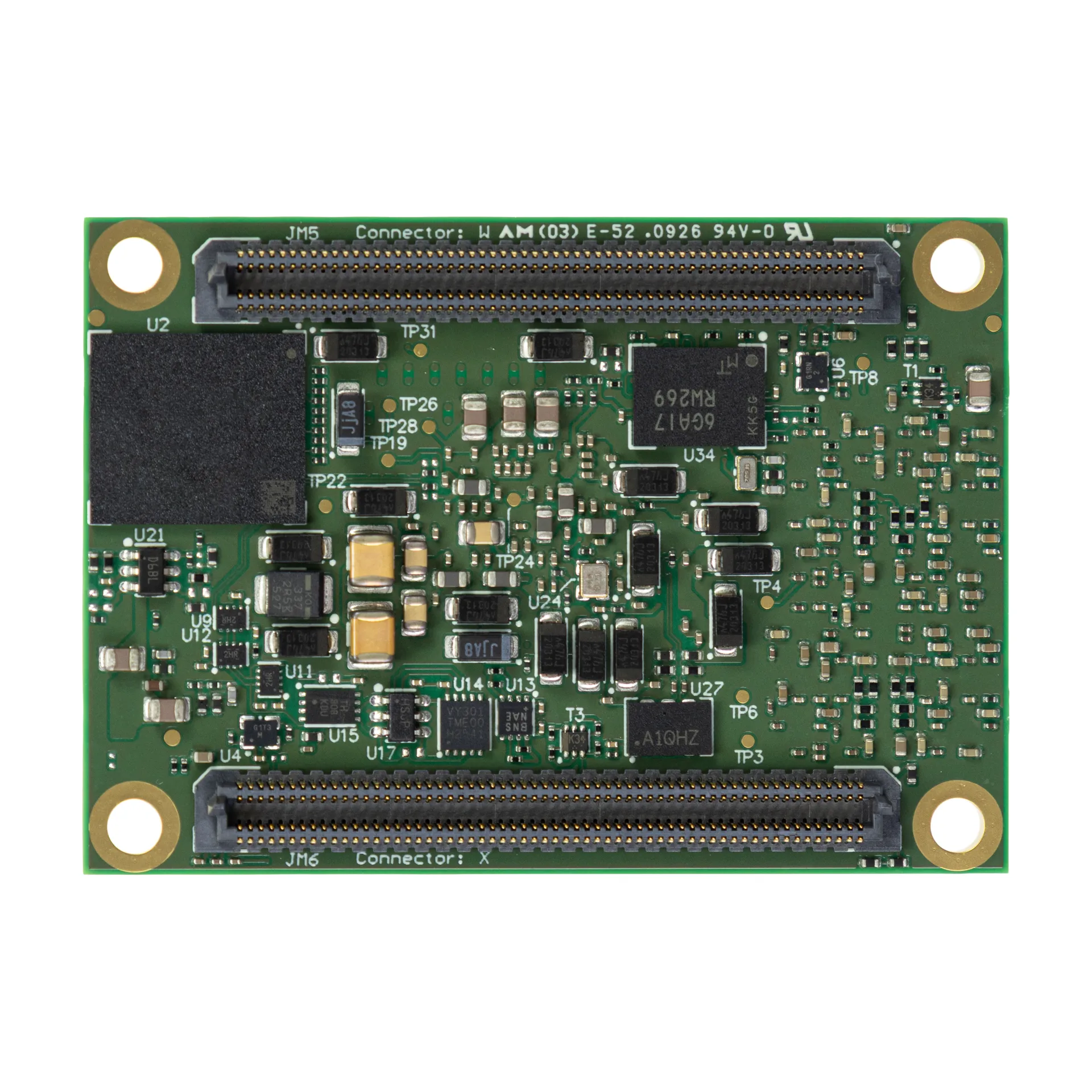

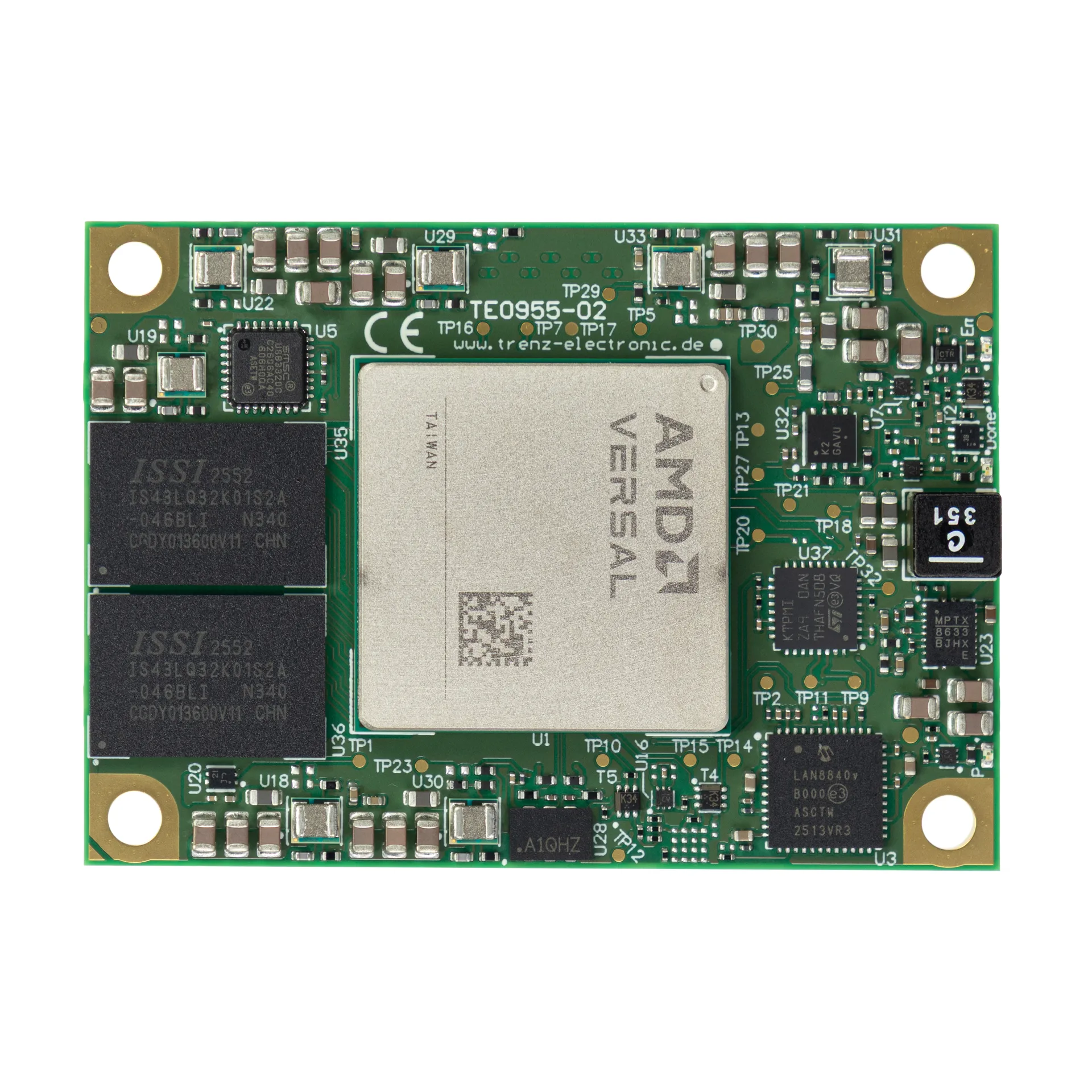

TE0955-02-EGBE32A

SoC
- AMD Versal™ AI Edge XCVE2302-1LSESFVA784 device
  - SFVA784 package (possible variants: VE2202, VM1102)
RAM/Storage
- 8 GByte LPDDR4 SDRAM
- 256 MByte OSPI Flash
- 2Kbit EEPROM with MAC-address
On Board
- USB2.0 PHY
- Gigabit Ethernet PHY
- Clock for PS, PHYs, DDR4, PL
Interface
- 8 GTYP Transceivers
- 54 pins XPIO (MIPI ready)
- 22 pins HDIO (MIPI ready)
- MIO (SDIO, UART, I2C, SPI ready)
- 2 x Samtec ADM B2B connectors
Power
- 5 V - 12 V
Dimension
- 40 mm x 56.4 mm

Other assembly options for cost or performance optimization plus high volume prices available on request.

1 x TE0955-02-EGBE32A Trenz Electronic Versal™ SoM with AMD Versal™ AI Edge VE2302 device

製品名	価格(税別)
TE0955-02-EGBE32A	¥220,800	カートに入れる
