TEI0006-05-API23A

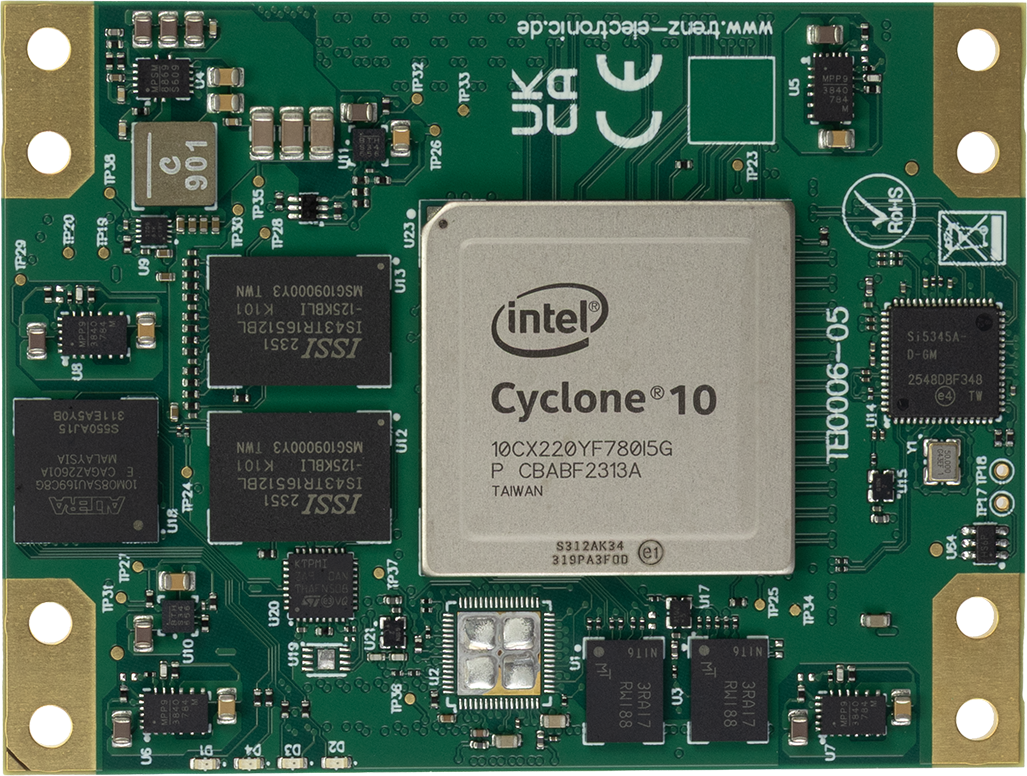

Altera® Cyclone® 10 GX Industrial [10CX220YF780I5G]
- Package: FBGA-780
- Speed Grade: 5 (Fastest)
- Temperature: -40°C to 100°C
- Package compatible device 10CX150 and 10CX105 as assembly variant on request possible
2 x SDRAM DDR3L Memory IC 8 Gbit (1 GByte), Half rate: 533 MHz; Quarter rate: max. 800 MHz
2 x SPI Flash, 1 Gbit (128 MByte)
1 x Gigabit Ethernet
10-Channel, Any-Frequency, Any-Output Jitter Attenuator/Clock Multiplier
Altera® MAX 10 as System Controller (CPLD)
2 Kbit EEPROM Memory
4 x User LED
I/O interfaces: 226/94/46 (IOs/DIFF. Pairs/LVDS Pairs)
12 x 12.5 Gbps Transceiver
Board to Board (B2B) Connection: Plug-on module with 3 x 160-pin Samtec Razor Beam (ST5) connectors
5 V Power Supply
Dimension: 8 cm x 6 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

製品名	価格(税別)
TEI0006-05-API23A	¥80,800	カートに入れる
