TEG2000-01-P001

定価(税別)	オープン価格
在庫	メーカー在庫 100個
	カートに入れる

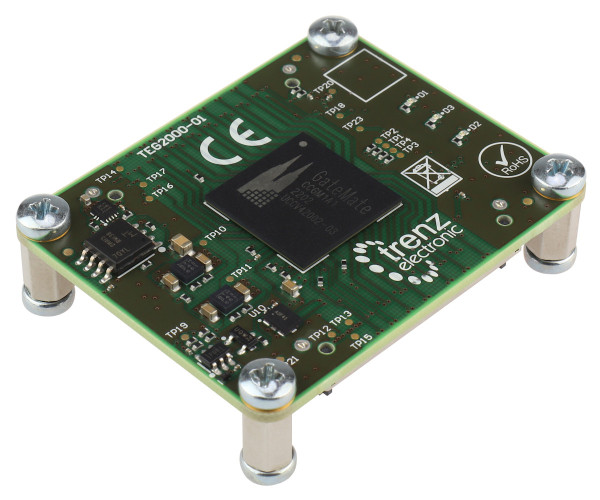

The Trenz Electronic TEG2000-01-P001 is a powerful 4 x 5 cm FPGA module with the cost-effective GateMate A1 form Cologne Chip AG. The module is equipped 16 MByte QSPI Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O's is provided via rugged high-speed stacking connections.

The module sets a new standard for low-cost programmable logic devices, providing an affordable yet powerful solution for diverse applications. Trenz Electronic can manufacture and assembly different variants in-house.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

納品物

1 x TEG2000-01-P001 Trenz Electronic MPSoC module with Cologne Chip GateMate CCGM1A1 FPGA
8 x screws
4 x bolts

追加情報

Manufacturer's article number: TEG2000-01-P001
Homepage Cologne Chip AG
Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic
Support Forum

リンク

製品名	価格(税別)
TEG2000-01-P001	オープン価格	お問合せください
